DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & Waterworks1000SS1000SS DCV

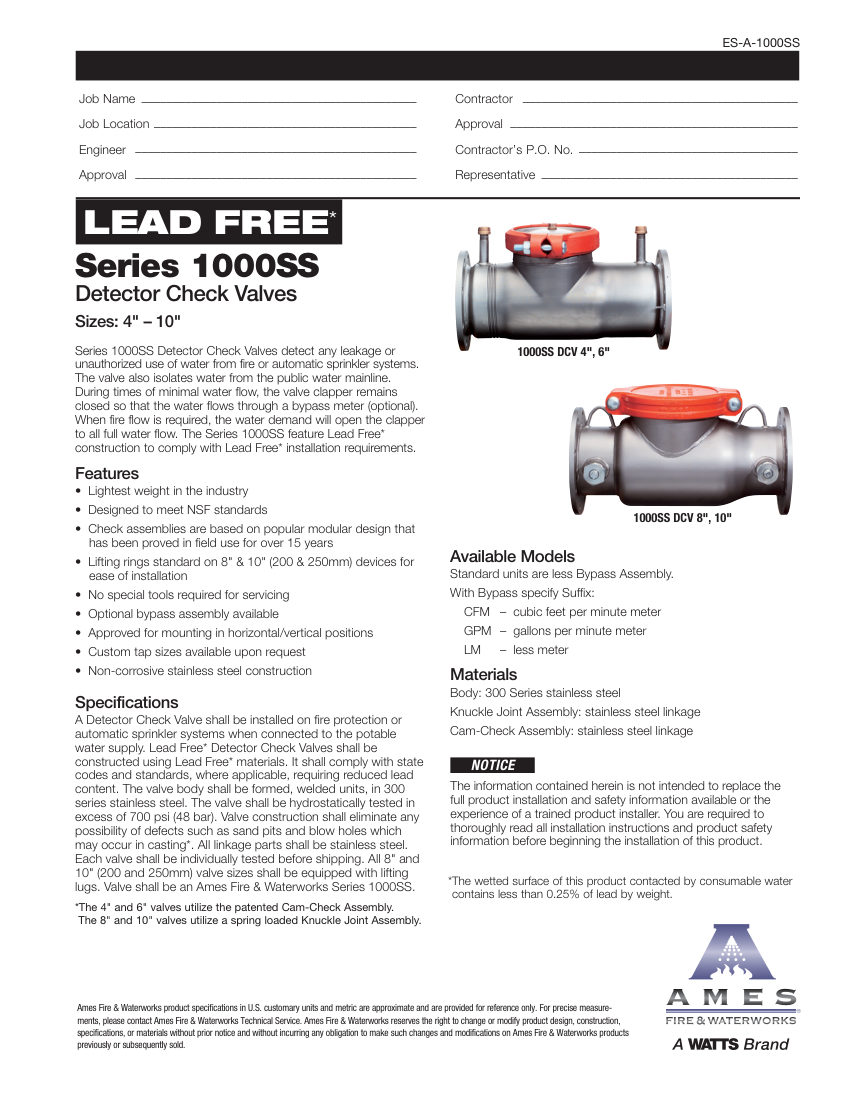

Name: Ames Fire & Waterworks 1000SS (1000SS DCV)
Brand: Ames Fire & Waterworks
SKU: 1000SS DCV

Ames Fire & Waterworks Detector Check Valve (Detector Check Valves). Model 1000SS. Sizes: 4" – 10"

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	1000SS DCV
Description	Ames Fire & Waterworks Detector Check Valve (Detector Check Valves). Model 1000SS. Sizes: 4" – 10"
Max Working Pressure	175 psi (12.1 bar)
Temperature Range	33°F – 110°F (0.5°C – 43°C)
Body Material	300 Series Stainless Steel. material: 300 Series stainless steel
Connection size	4" – 10"
End connection	Flange (ANSI B16.5 Class 125/AWWA C207 Class D)
Pressure Rating	175 psi (12.1 bar)
Mounting	Horizontal/Vertical
Compliance	NSF 1045, NSF 312 (8" & 10" only), Lead Free.

Also cataloged as: 1000SS DCV 4, 1000SS DCV 6, 1000SS DCV 8, 1000SS DCV 10, 1000SS DCV CFM, 1000SS DCV GPM, 1000SS DCV LM
