Ames Fire & Waterworks1000DCV Large1010DCV

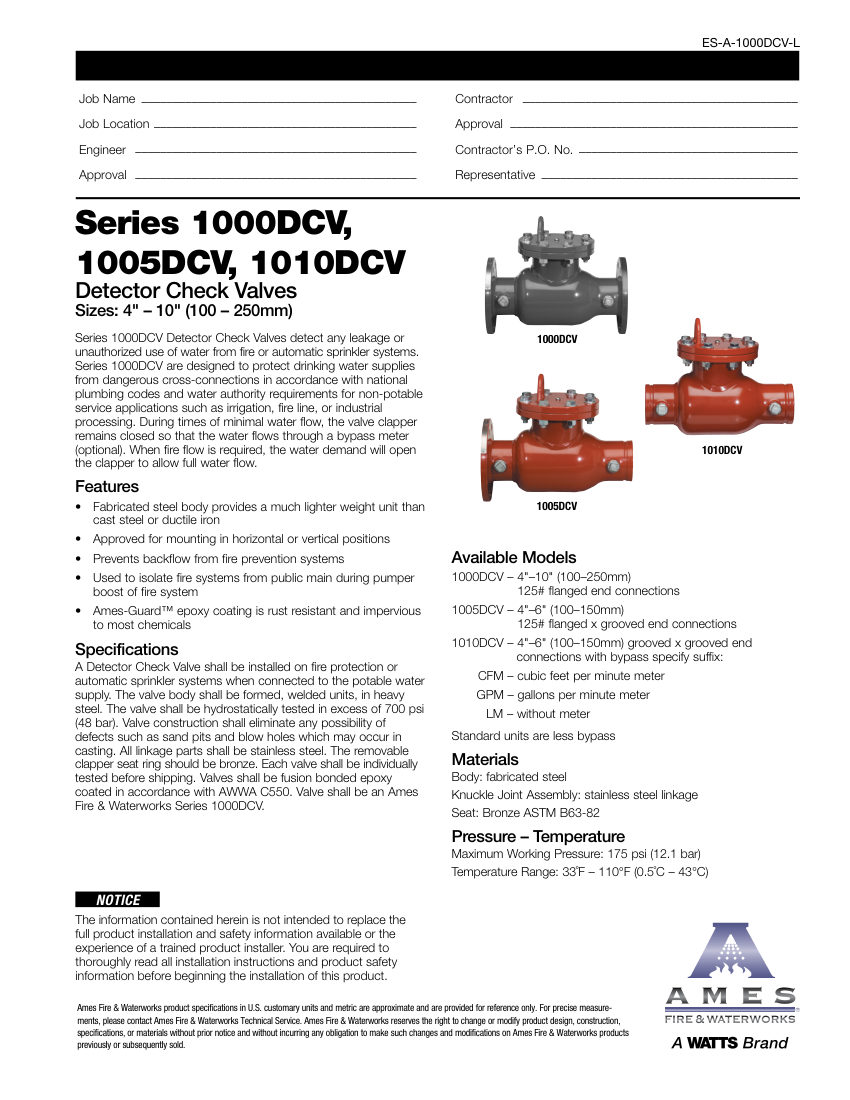

Name: Ames Fire & Waterworks 1000DCV Large (1010DCV)
Brand: Ames Fire & Waterworks
SKU: 1010DCV

Ames Fire & Waterworks Detector Check Valve (Detector Check Valves). Model 1000DCV. Maximum Working Pressure: 175 psi (12.1 bar)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	1010DCV
Description	Ames Fire & Waterworks Detector Check Valve (Detector Check Valves). Model 1000DCV. Maximum Working Pressure: 175 psi (12.1 bar)
Temperature Range	33°F – 110°F (0.5°C – 43°C); Hydrostatically tested in excess of 700 psi (48 bar); Prevents backflow from fire prevention systems. material: Fabricated steel body, stainless steel linkage, bronze seat
Connection size	4" – 10" (100 – 250mm)
End connection	125# flanged
Pressure Rating	175 psi (12.1 bar)
Finish	Ames-Guard™ epoxy coating (AWWA C550)
Mounting	Horizontal or vertical.

Also cataloged as: 1000DCV, 1005DCV, 1010DCV-CFM, 1010DCV-GPM, 1010DCV-LM
