DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & Waterworks2000SS2000SS

Ames Fire & Waterworks Double Check Valve Assembly. Model 2000SS. Prevents reverse flow of polluted water into potable system; Consists of two independently operated spring-loaded cam-check valves; Includes two resilient seated shutoff valves and four ball valve type test cocks; OS&Y model option includes integrated supervisory tamper switches. material: 300 Series stainless steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF2000SS.pdfData sheet

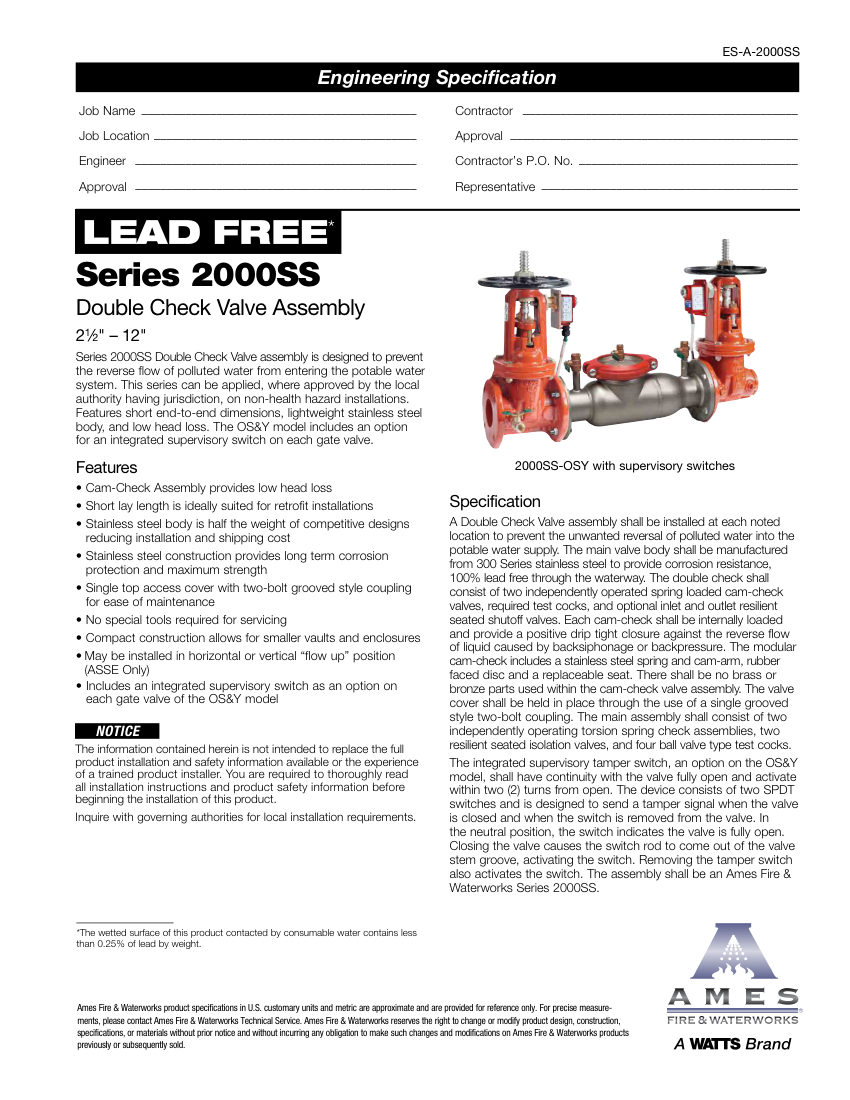

Ames Fire & Waterworks 2000SS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
2000SS
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number2000SS
DescriptionAmes Fire & Waterworks Double Check Valve Assembly. Model 2000SS. Prevents reverse flow of polluted water into potable system; Consists of two independently operated spring-loaded cam-check valves; Includes two resilient seated shutoff valves and four ball valve type test cocks; OS&Y model option includes integrated supervisory tamper switches. material: 300 Series stainless steel
Connection size2.5" – 12"
End connectionGrooved style two-bolt coupling
MountingHorizontal or vertical (flow up)
DimensionsShort end-to-end dimensions
ComplianceASSE, 100% lead free (<0.25% lead).

Also cataloged as: 2000SS-OSY, 2000SS-NRS, 2000SS-TS-OSY, 2000SS-OSY FxG, 2000SS-OSY GxF, 2000SS-OSY GxG, 2000SS-LG, 2000SS-OSY GXF, 2000SS-2 1/2, 2000SS-3, 2000SS-4, 2000SS-6, 2000SS-8, 2000SS-10, 2000SS-12
