DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksAutomatic Control Valve 263SS263SS

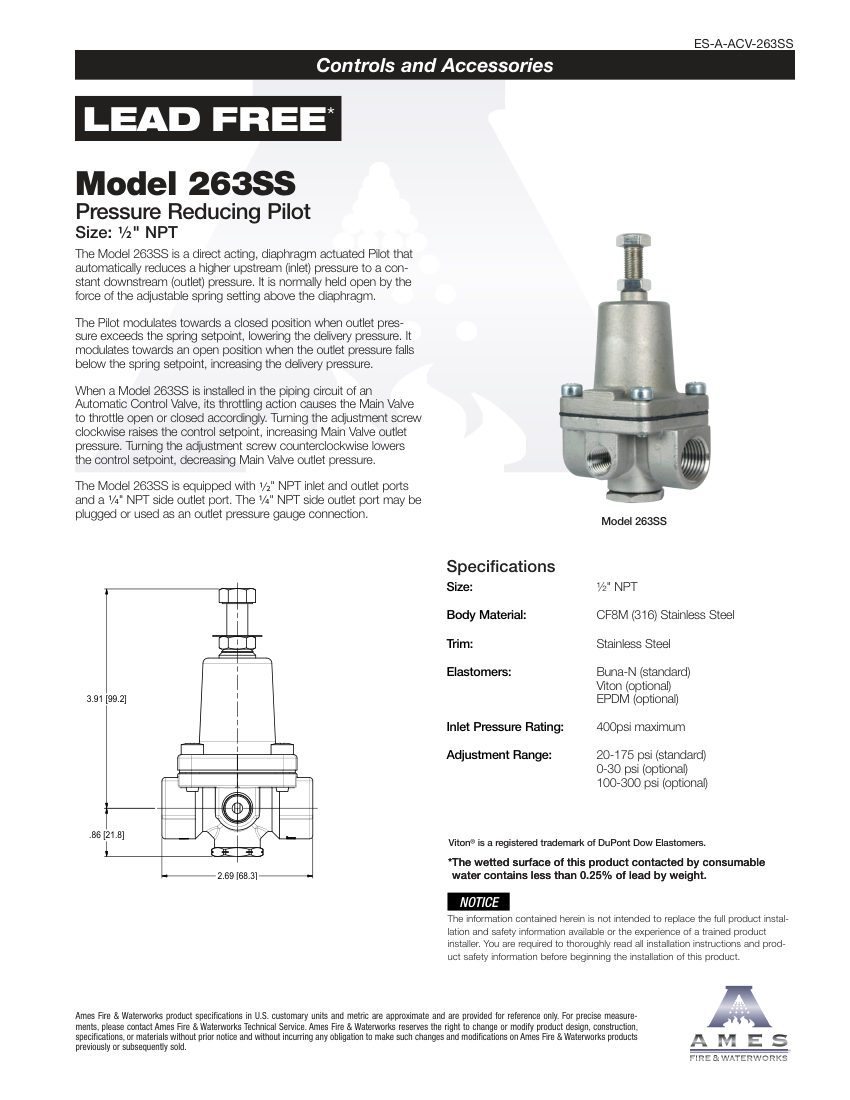

Name: Ames Fire & Waterworks Automatic Control Valve 263SS
Brand: Ames Fire & Waterworks
SKU: 263SS

Ames Fire & Waterworks Pressure Reducing Pilot (Controls and Accessories). Model 263SS. Direct acting, diaphragm actuated pilot

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	263SS
Description	Ames Fire & Waterworks Pressure Reducing Pilot (Controls and Accessories). Model 263SS. Direct acting, diaphragm actuated pilot
Adjustment Range	20-175 psi (standard)
Body Material	CF8M (316) Stainless Steel
Elastomers	Buna-N (standard), Viton/EPDM (optional). material: CF8M (316) Stainless Steel
Connection size	1/2" NPT
End connection	NPT
Pressure Rating	400psi maximum
Dimensions	3.91" x 2.69" x 0.86"
Compliance	Lead Free (<0.25% lead by weight).
