DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & Waterworks3000B, 3000B-FP3000BM1

Ames Fire & Waterworks Double Check Detector Backflow Prevention Assembly (Backflow Prevention). Model 3000B, 3000B-FP. Designed for non-potable service applications such as irrigation, fire line, or industrial processing; Consists of main line valve body with two independently acting poppet-type check modules; Standardly equipped with resilient seated OSY shutoff valves and 5/8" x 3/4" meter; Auxiliary bypass line contains 5/8" x 3/4" Water Meter complying with ANSI/AWWA C700. connectionSize: 2"

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF3000BM1.pdfData sheet

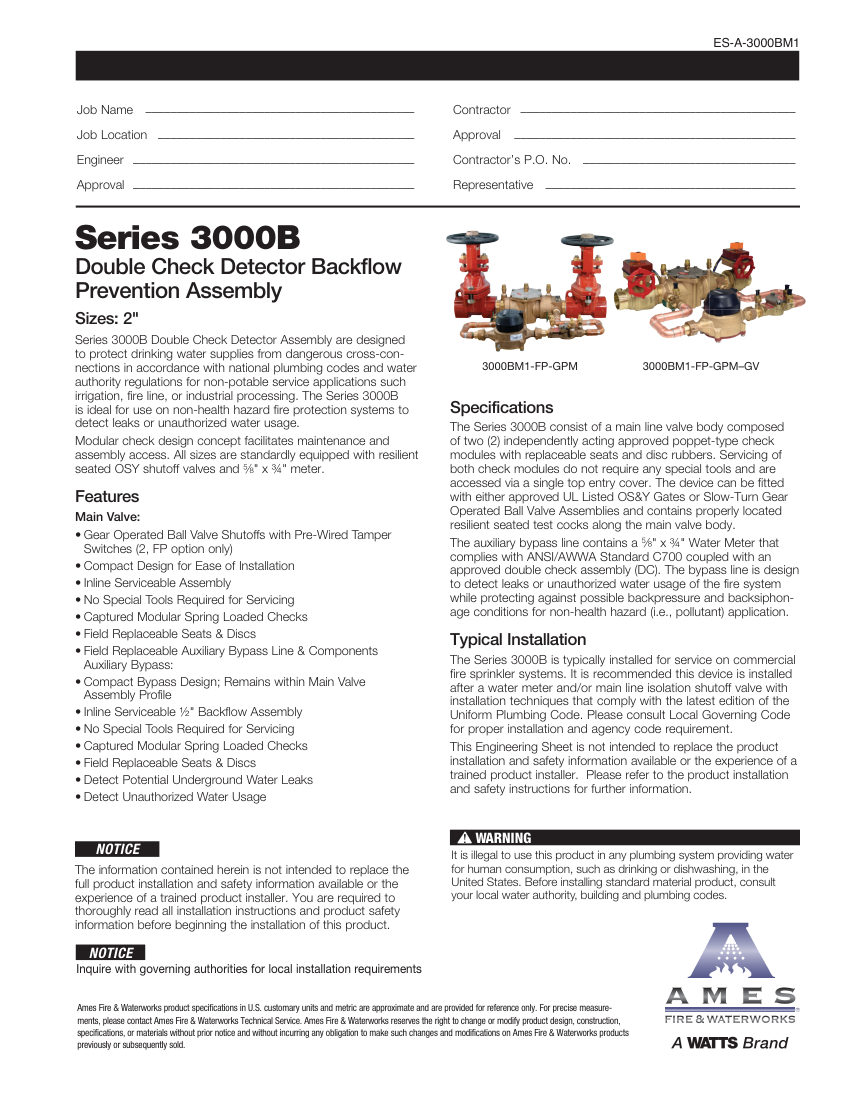

Ames Fire & Waterworks 3000BM1 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
3000BM1
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number3000BM1
DescriptionAmes Fire & Waterworks Double Check Detector Backflow Prevention Assembly (Backflow Prevention). Model 3000B, 3000B-FP. Designed for non-potable service applications such as irrigation, fire line, or industrial processing; Consists of main line valve body with two independently acting poppet-type check modules; Standardly equipped with resilient seated OSY shutoff valves and 5/8" x 3/4" meter; Auxiliary bypass line contains 5/8" x 3/4" Water Meter complying with ANSI/AWWA C700. connectionSize: 2"
MountingInline
ComplianceANSI/AWWA C700, UL Listed, Uniform Plumbing Code.

Also cataloged as: 3000BM1-FP-GPM, 3000BM1-FP-GPM-GV, 3000BM1-OSY-GPM, 3000BM1-FP-CFM, 3000BM1-OSY, 3000BM1-FP, 3000BM1-CFM, 3000BM1-GPM, 3000BM1-LM
