DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksDeringer 30G30G

Ames Fire & Waterworks Double Check Detector Valve Assembly (Backflow Prevention). Model Deringer 30G. Prevents non-health hazard pollutants from entering potable water supply; Features patented Dual-action check modules (poppet at low flow, swing at high flow); Includes two inline serviceable AWWA C509 resilient seated gate valves (OS&Y); Stem includes tamper switch groove for supervisory monitoring. material: 304 Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF30G.pdfData sheet

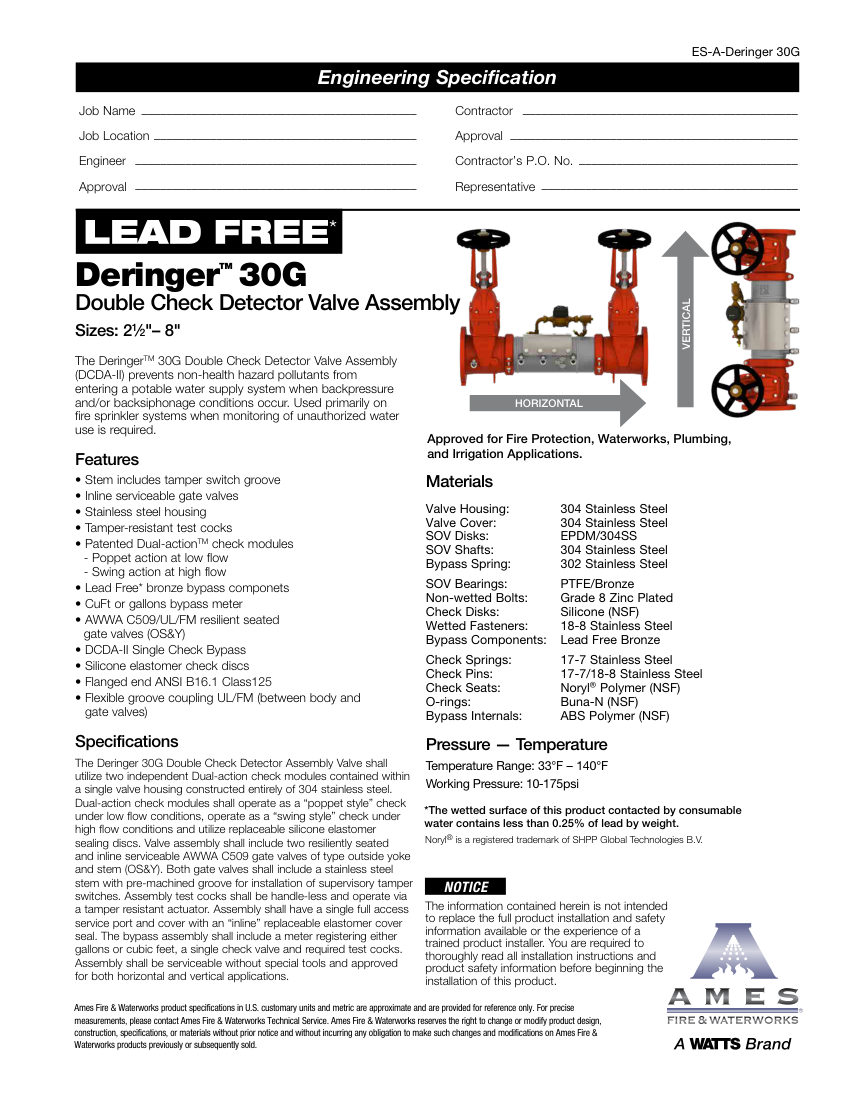

Ames Fire & Waterworks 30G cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
30G
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number30G
DescriptionAmes Fire & Waterworks Double Check Detector Valve Assembly (Backflow Prevention). Model Deringer 30G. Prevents non-health hazard pollutants from entering potable water supply; Features patented Dual-action check modules (poppet at low flow, swing at high flow); Includes two inline serviceable AWWA C509 resilient seated gate valves (OS&Y); Stem includes tamper switch groove for supervisory monitoring. material: 304 Stainless Steel
Connection size2.5"– 8"
End connectionFlanged ANSI B16.1 Class 125
Pressure Rating10-175 psi
MountingHorizontal or Vertical
ComplianceAWWA C509, UL, FM,
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
