DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & Waterworks4000SS (12 IN) (French)4000SS

Ames Fire & Waterworks Reduced Pressure Backflow Preventer (Backflow Prevention). Model 4000SS-12. Stainless steel body is 50% lighter than competing designs; Features patented cam disc valve assembly for maximum flow at low pressure drop; Includes flood sensor for discharge detection (requires connection kit for active alerts); Operating temperature range: 33°F – 110°F (0.5°C – 43°C). material: Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF4000SS.pdfData sheet

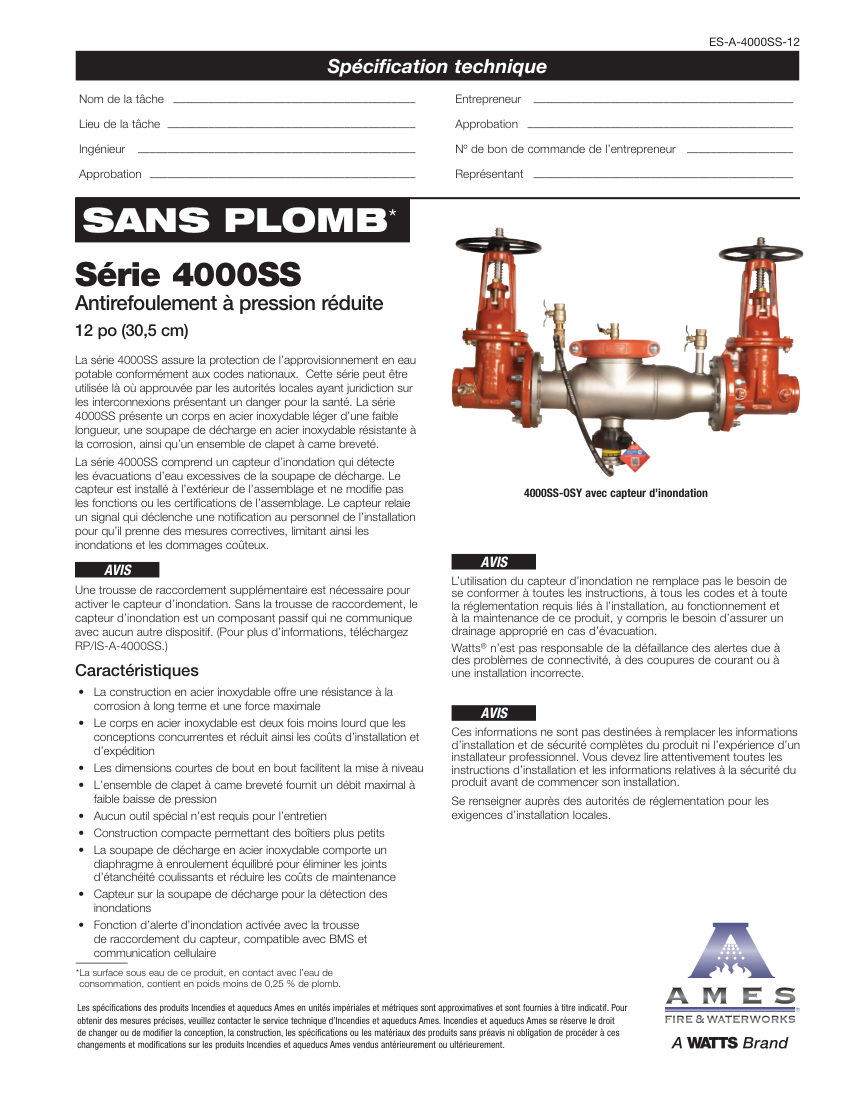

Ames Fire & Waterworks 4000SS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
4000SS
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number4000SS
DescriptionAmes Fire & Waterworks Reduced Pressure Backflow Preventer (Backflow Prevention). Model 4000SS-12. Stainless steel body is 50% lighter than competing designs; Features patented cam disc valve assembly for maximum flow at low pressure drop; Includes flood sensor for discharge detection (requires connection kit for active alerts); Operating temperature range: 33°F – 110°F (0.5°C – 43°C). material: Stainless Steel
Connection size12 in (30.5 cm)
Pressure Rating175 psi (12.1 bar)
ComplianceAWWA C511-92, Lead-free (<0.25%).

Also cataloged as: 4000SS-OSY, 4000SS-NRS, 4000SS-FS, 4000SS-LG, 4000SS-OSY FxG, 4000SS-OSY GXF, 4000SS-OSY GXG
