DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksDeringer 40GX - 4IN40GX

Ames Fire & Waterworks Reduced Pressure Zone Assembly (Backflow Prevention). Model Deringer 40GX. Dual-action second check module (poppet at low flow, swing at high flow); Includes two inline serviceable AWWA C509 OS&Y gate valves; Balanced chamber relief valve with no sliding seals; Tamper-resistant test cocks with handle-less actuator. material: 304 Stainless Steel housing, 302/17-7 Stainless Steel springs, Silicone check discs

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF40GX.pdfData sheet

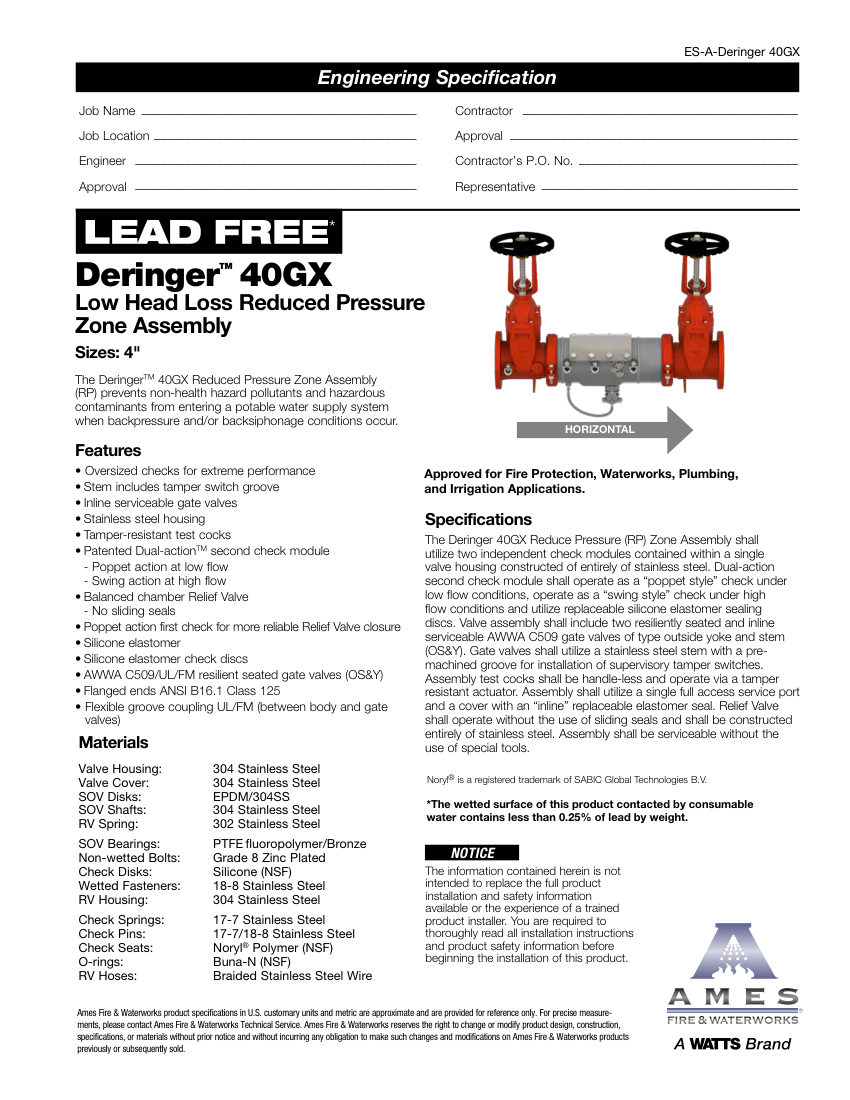

Ames Fire & Waterworks 40GX cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
40GX
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number40GX
DescriptionAmes Fire & Waterworks Reduced Pressure Zone Assembly (Backflow Prevention). Model Deringer 40GX. Dual-action second check module (poppet at low flow, swing at high flow); Includes two inline serviceable AWWA C509 OS&Y gate valves; Balanced chamber relief valve with no sliding seals; Tamper-resistant test cocks with handle-less actuator. material: 304 Stainless Steel housing, 302/17-7 Stainless Steel springs, Silicone check discs
Connection size4"
End connectionFlanged ANSI B16.1 Class 125
MountingHorizontal
ComplianceAWWA C509, UL, FM, NSF.
