DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & Waterworks5000SS5000SS

Ames Fire & Waterworks Reduced Pressure Detector Assembly. Model 5000SS. Includes flood sensor to detect excessive water discharges; Stainless steel construction for corrosion resistance and strength; Cam-check valves provide maximum flow at low pressure drop; Balanced rolling diaphragm relief valve eliminates sliding seals. material: Stainless steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF5000SS.pdfData sheet

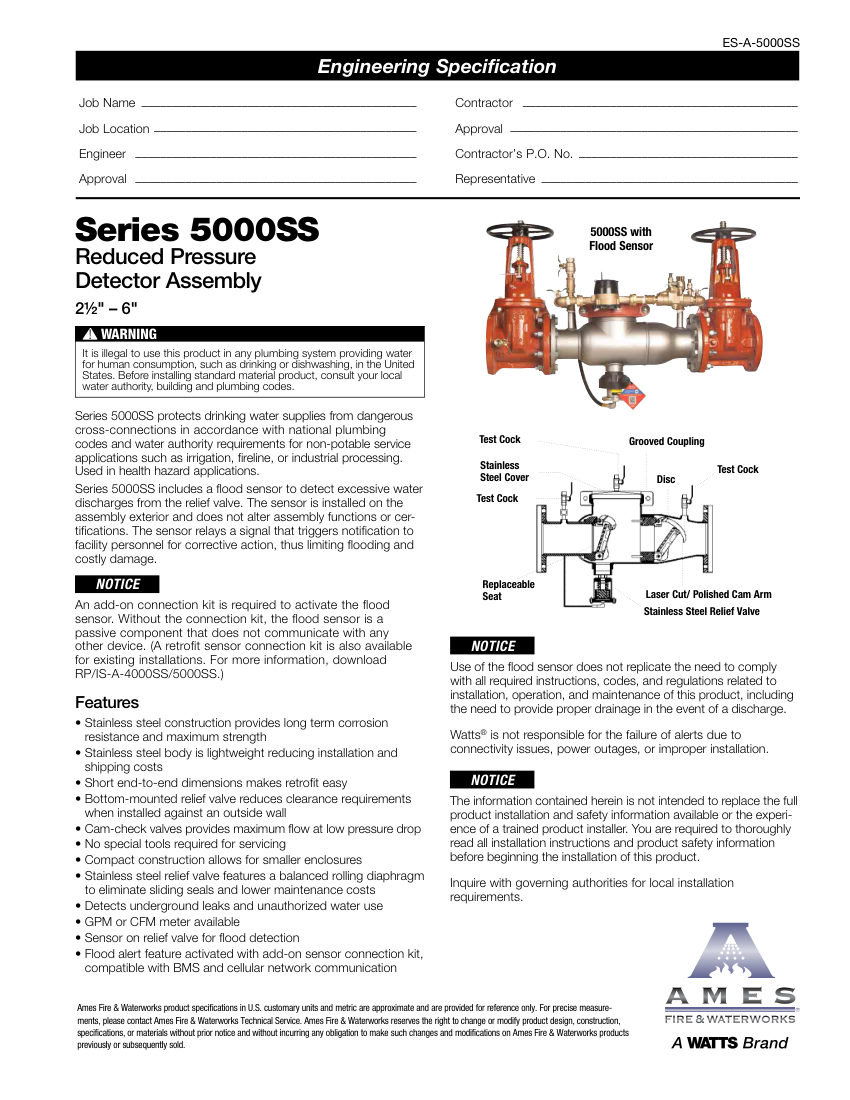

Ames Fire & Waterworks 5000SS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
5000SS
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number5000SS
DescriptionAmes Fire & Waterworks Reduced Pressure Detector Assembly. Model 5000SS. Includes flood sensor to detect excessive water discharges; Stainless steel construction for corrosion resistance and strength; Cam-check valves provide maximum flow at low pressure drop; Balanced rolling diaphragm relief valve eliminates sliding seals. material: Stainless steel
Connection size2½" – 6"
End connectionGrooved Coupling
MountingBottom-mounted relief valve
DimensionsShort end-to-end dimensions
ComplianceNational plumbing codes, water authority requirements for non-potable service.

Also cataloged as: 5000SS-FS, 5000SS-LG, 5000SS-OSY, 5000SS-OSY FxG**, 5000SS-OSY GXF**, 5000SS-OSY GxG**, 5000SS-CFM, 5000SS-GPM, 5000SS-LM, 5000SS-OSY FxG, 5000SS-OSY GXF, 5000SS-OSY GXG, 5000SS-OSY GxG
