DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksDeringer 50G50G

Ames Fire & Waterworks Reduced Pressure Detector Assembly (Backflow Prevention). Model Deringer 50G. Stainless steel housing with 304 SS valve cover; Dual-action second check module (poppet at low flow, swing at high flow); Includes AWWA C509/UL/FM resilient seated gate valves (OS&Y); Balanced chamber relief valve requiring no sliding seals. material: 304 Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF50G.pdfData sheet

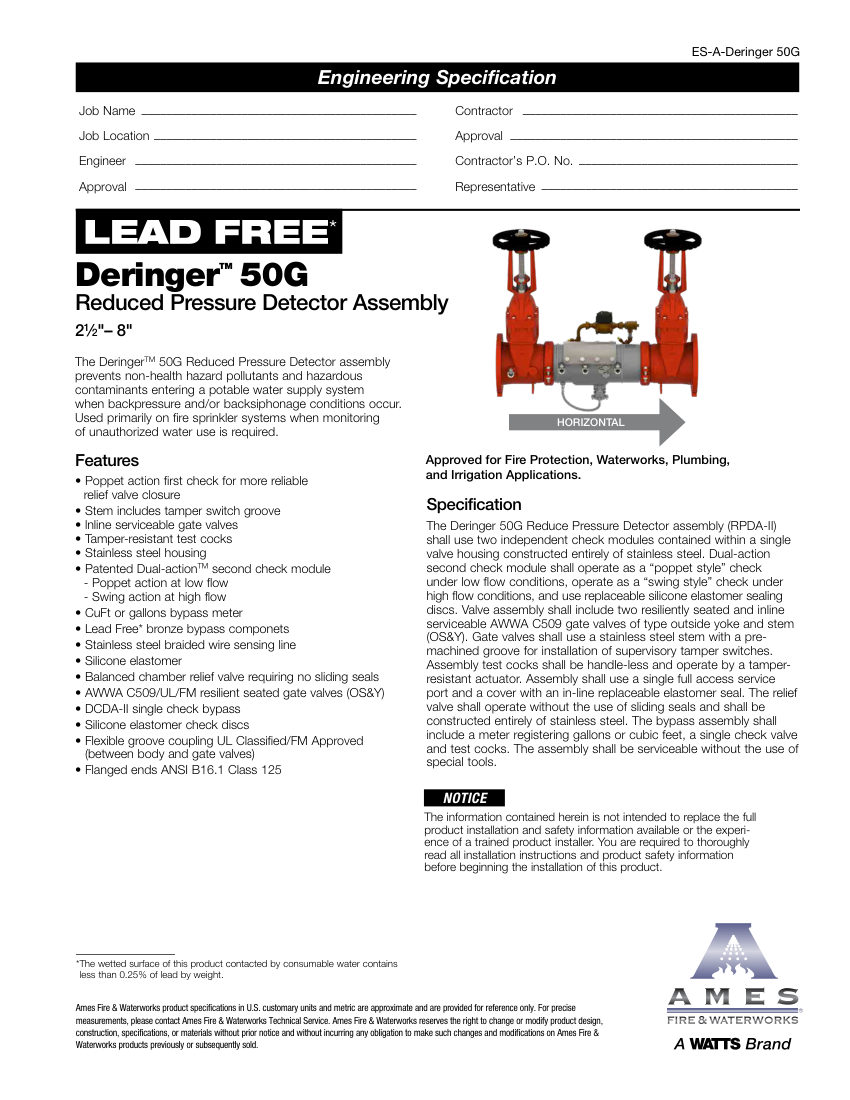

Ames Fire & Waterworks 50G cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
50G
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number50G
DescriptionAmes Fire & Waterworks Reduced Pressure Detector Assembly (Backflow Prevention). Model Deringer 50G. Stainless steel housing with 304 SS valve cover; Dual-action second check module (poppet at low flow, swing at high flow); Includes AWWA C509/UL/FM resilient seated gate valves (OS&Y); Balanced chamber relief valve requiring no sliding seals. material: 304 Stainless Steel
Connection size2.5"– 8"
End connectionFlanged ANSI B16.1 Class 125
MountingHorizontal
ComplianceAWWA C511-07, NSF/ANSI 372, UL Certified, FM Approved.

Also cataloged as: 50G-2 1/2, 50G-3, 50G-4, 50G-6, 50G-8
