DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksDeringer 50GX - 6 IN50GX

Ames Fire & Waterworks Reduced Pressure Detector Assembly (Backflow Prevention). Model Deringer 50GX. Dual-action second check module (poppet at low flow, swing at high flow); Includes two AWWA C509/UL/FM resilient seated gate valves (OS&Y); Balanced chamber Relief Valve with no sliding seals; Stainless steel braided wire sensing line. material: 304 Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF50GX.pdfData sheet

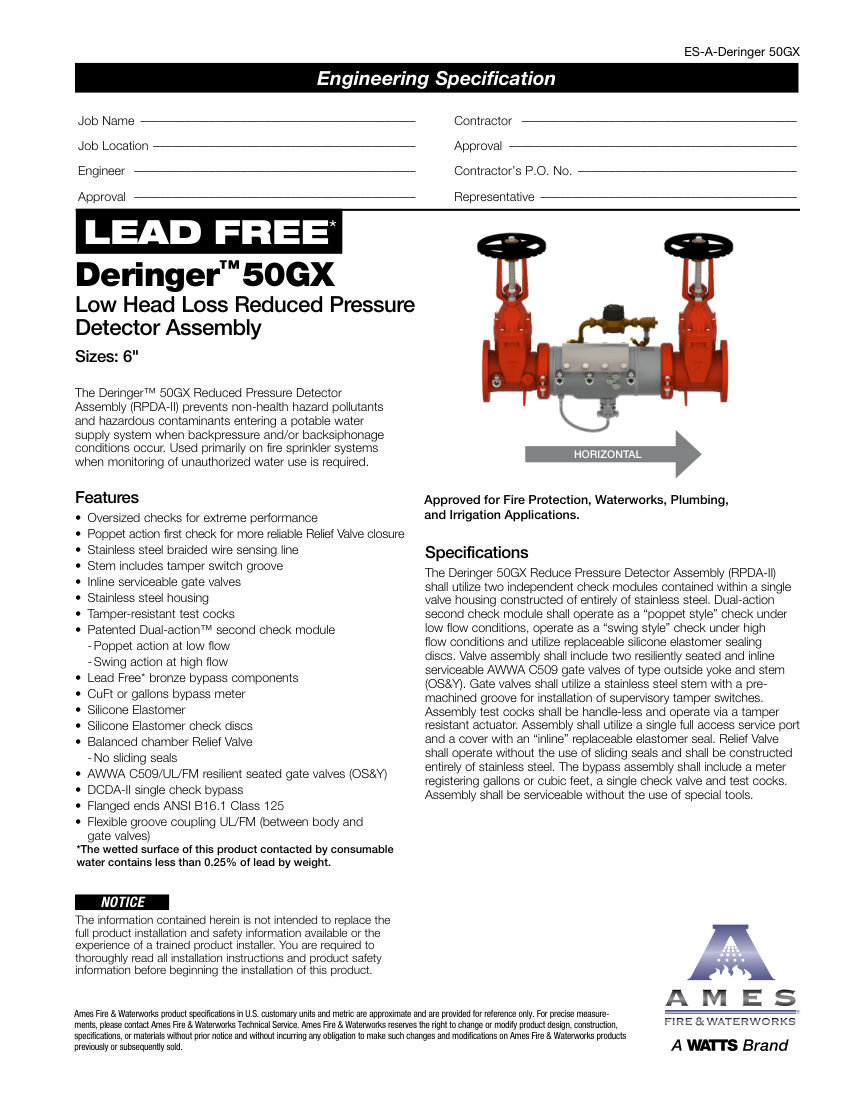

Ames Fire & Waterworks 50GX cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
50GX
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number50GX
DescriptionAmes Fire & Waterworks Reduced Pressure Detector Assembly (Backflow Prevention). Model Deringer 50GX. Dual-action second check module (poppet at low flow, swing at high flow); Includes two AWWA C509/UL/FM resilient seated gate valves (OS&Y); Balanced chamber Relief Valve with no sliding seals; Stainless steel braided wire sensing line. material: 304 Stainless Steel
Connection size6 IN
End connectionFlanged ANSI B16.1 Class 125
Pressure Rating10 – 175psi
MountingHorizontal
ComplianceAWWA C511-07, NSF/ANSI 372, UL CERTIFIED, LEAD FREE.
