DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksDeringer 50GX - 4 IN50GX 4

Ames Fire & Waterworks Reduced Pressure Detector Assembly (Backflow Prevention). Model Deringer 50GX. Stainless steel housing with 304 SS valve cover; Patented Dual-action second check module (poppet at low flow, swing at high flow); Includes two AWWA C509/UL/FM resilient seated gate valves (OS&Y); Balanced chamber relief valve requiring no sliding seals. material: 304 Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF50GX-4.pdfData sheet

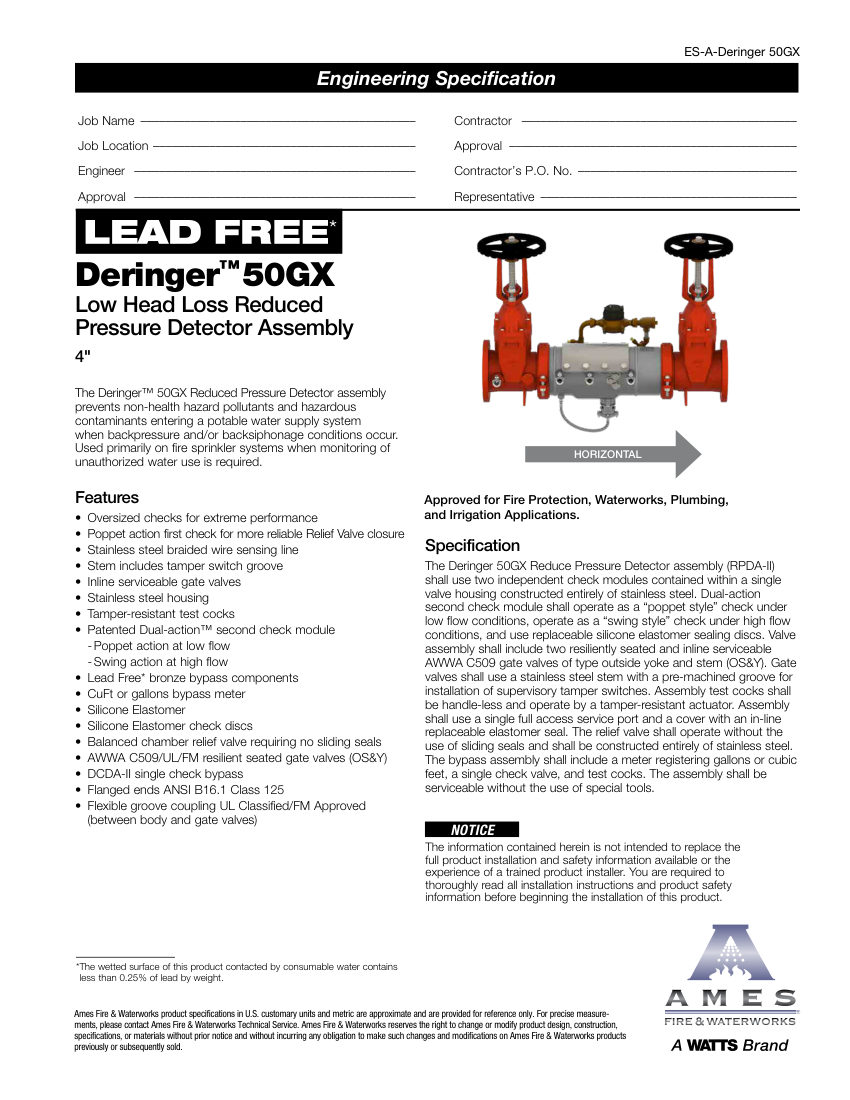

Ames Fire & Waterworks 50GX 4 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
50GX 4
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number50GX 4
DescriptionAmes Fire & Waterworks Reduced Pressure Detector Assembly (Backflow Prevention). Model Deringer 50GX. Stainless steel housing with 304 SS valve cover; Patented Dual-action second check module (poppet at low flow, swing at high flow); Includes two AWWA C509/UL/FM resilient seated gate valves (OS&Y); Balanced chamber relief valve requiring no sliding seals. material: 304 Stainless Steel
Connection size4 IN
End connectionFlanged ANSI B16.1 Class 125
Pressure Rating10 – 175 psi
MountingHorizontal
ComplianceAWWA C509, UL, FM, Lead Free.
