DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksDeringer 50X 4 IN50X

Ames Fire & Waterworks Reduced Pressure Detector Assembly (Backflow Prevention). Model Deringer 50X. Stainless steel housing with dual-action second check module; Includes two AWWA C509 OS&Y gate valves; Balanced chamber relief valve with no sliding seals; Bypass assembly includes meter and single check valve. material: 304 Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF50X.pdfData sheet

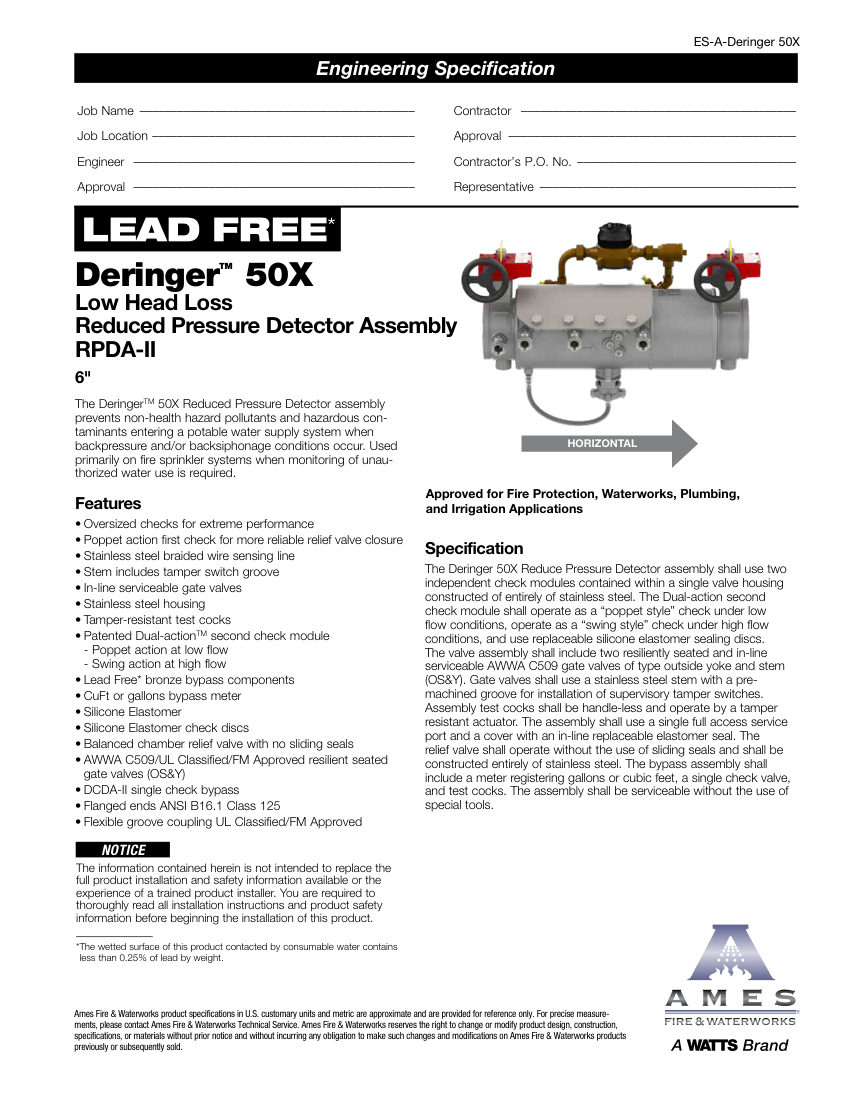

Ames Fire & Waterworks 50X cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
50X
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number50X
DescriptionAmes Fire & Waterworks Reduced Pressure Detector Assembly (Backflow Prevention). Model Deringer 50X. Stainless steel housing with dual-action second check module; Includes two AWWA C509 OS&Y gate valves; Balanced chamber relief valve with no sliding seals; Bypass assembly includes meter and single check valve. material: 304 Stainless Steel
Connection size4 IN
End connectionFlanged ends ANSI B16.1 Class 125
Pressure Rating10 – 175 psi
MountingHORIZONTAL
ComplianceAWWA C511-07, UL Certified, FM Approved, Lead Free.

Also cataloged as: 50X-6
