Ames Fire & WaterworksAutomatic Control Valve 605GS-16605

Ames Fire & Waterworks Reduced Port Single Chamber Basic Valve (Automatic Control Valve). Model 605GS-16. Single chamber design with mechanical check feature; Two-piece disc and diaphragm assembly is the only moving part; Reduced port design for improved low-flow performance

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF605.pdfData sheet

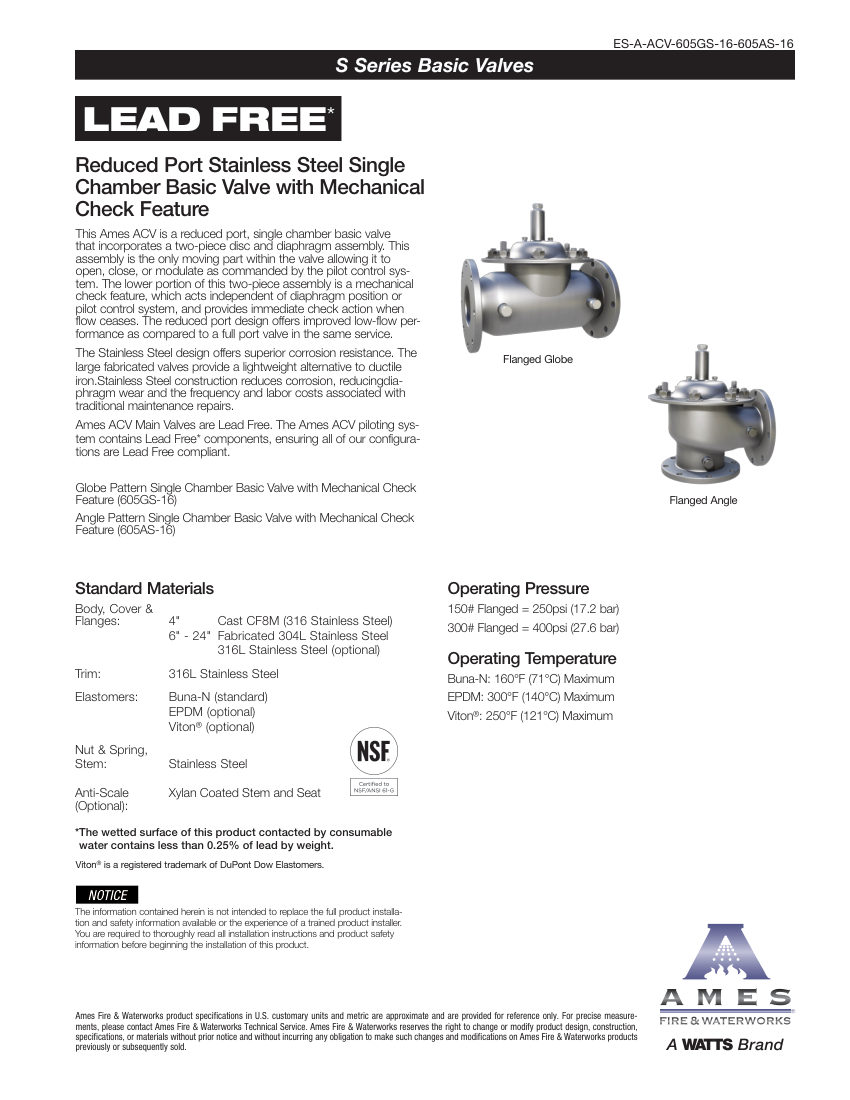

Ames Fire & Waterworks 605 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
605
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number605
DescriptionAmes Fire & Waterworks Reduced Port Single Chamber Basic Valve (Automatic Control Valve). Model 605GS-16. Single chamber design with mechanical check feature; Two-piece disc and diaphragm assembly is the only moving part; Reduced port design for improved low-flow performance
Elastomer optionsBuna-N, EPDM, Viton. material: 316 Stainless Steel (4"), 304L/316L Stainless Steel (6"-24")
Connection size4" - 24"
End connectionFlanged
Pressure Rating150# (250 psi), 300# (400 psi)
Flow RateMax Continuous: 485-11100 GPM
Max Intermittent590-14100 GPM
ComplianceLead Free (<0.25% lead by w

Also cataloged as: 605GS-16, 605AS-16, 605-GS, 605-AS, 605-16
