Ames Fire & WaterworksAutomatic Control Valve 605GD605GD

Ames Fire & Waterworks Reduced Port Ductile Iron Single Chamber Basic Valve (Automatic Control Valve). Model 605GD. One-piece disc and diaphragm assembly is the only moving part; Trim made of 316 Stainless Steel; Standard elastomer is Buna-N (Max 160°F/71°C); Optional elastomers include EPDM (Max 300°F/140°C) and Viton (Max 250°F/121°C). material: Ductile Iron ASTM A536

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF605GD.pdfData sheet

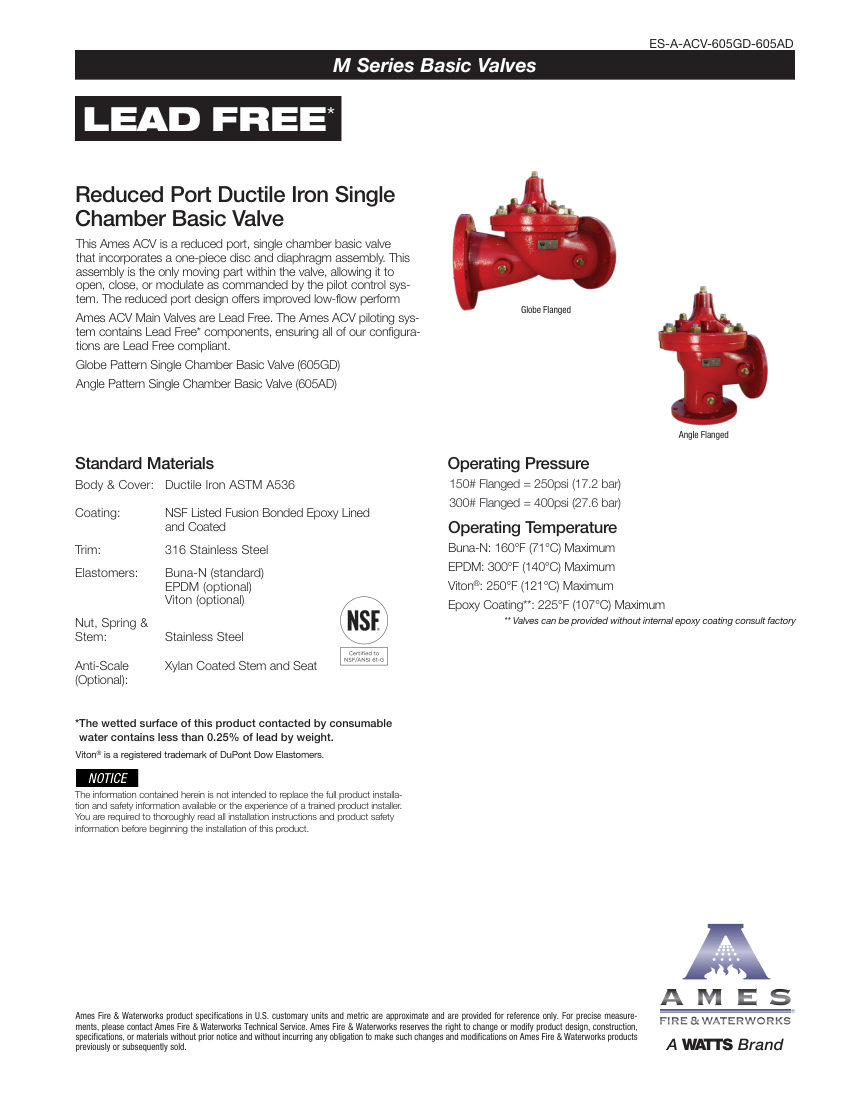

Ames Fire & Waterworks 605GD cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
605GD
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number605GD
DescriptionAmes Fire & Waterworks Reduced Port Ductile Iron Single Chamber Basic Valve (Automatic Control Valve). Model 605GD. One-piece disc and diaphragm assembly is the only moving part; Trim made of 316 Stainless Steel; Standard elastomer is Buna-N (Max 160°F/71°C); Optional elastomers include EPDM (Max 300°F/140°C) and Viton (Max 250°F/121°C). material: Ductile Iron ASTM A536
Connection size3-24 inches
End connectionFlanged
Pressure Rating150# Flanged = 250psi (17.2 bar); 300# Flanged = 400psi (27.6 bar)
Flow RateMax Continuous: 210-11100 GPM
Max Intermittent265-14100 GPM
FinishNSF Lis
