DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksAutomatic Control Valve 605GD-16605GD-16

Ames Fire & Waterworks Reduced Port Ductile Iron Single Chamber Basic Valve with Mechanical Check Feature (Automatic Control Valve). Model 605GD-16. Body and cover made of Ductile Iron ASTM A536; Trim is 316 Stainless Steel; Standard elastomers are Buna-N (max 160°F); Incorporates a two-piece disc and diaphragm assembly with mechanical check feature. material: Ductile Iron ASTM A536

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF605GD-16.pdfData sheet

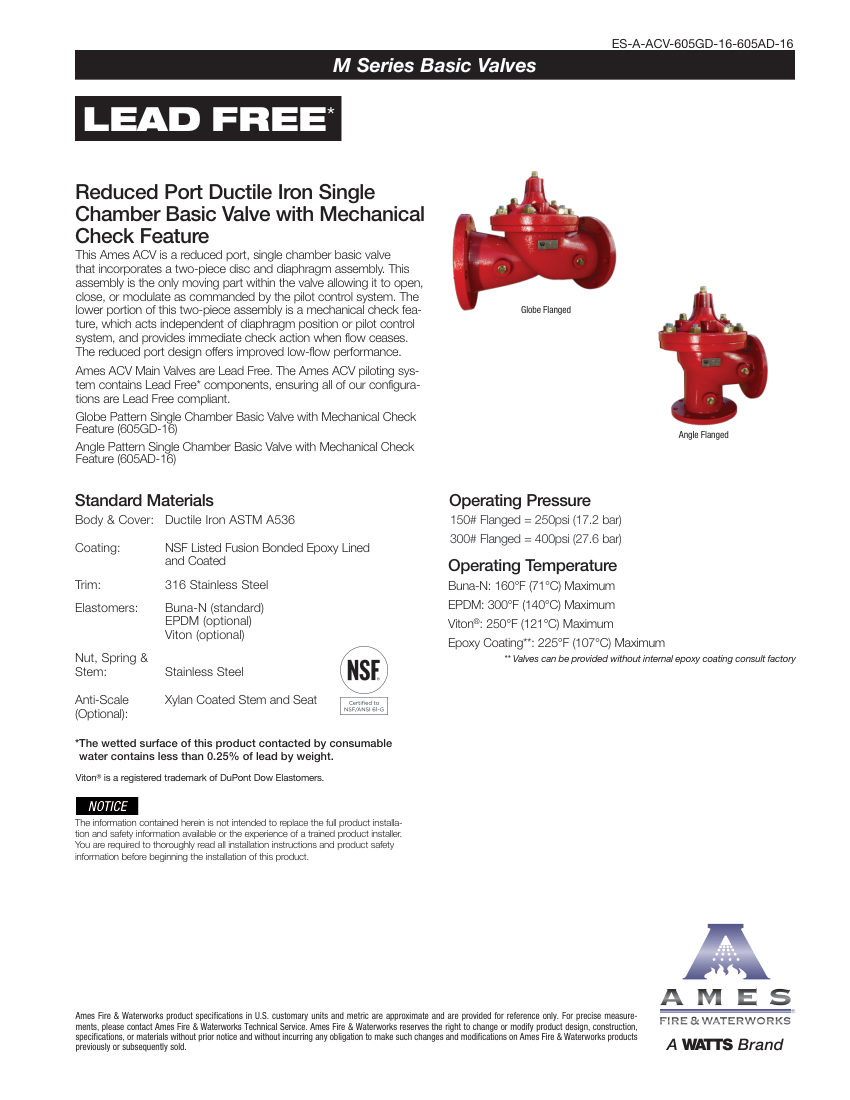

Ames Fire & Waterworks 605GD-16 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
605GD-16
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number605GD-16
DescriptionAmes Fire & Waterworks Reduced Port Ductile Iron Single Chamber Basic Valve with Mechanical Check Feature (Automatic Control Valve). Model 605GD-16. Body and cover made of Ductile Iron ASTM A536; Trim is 316 Stainless Steel; Standard elastomers are Buna-N (max 160°F); Incorporates a two-piece disc and diaphragm assembly with mechanical check feature. material: Ductile Iron ASTM A536
Connection size16 inch
End connectionGlobe Flanged
Pressure Rating150# Flanged = 250psi (17.2 bar); 300# Flanged = 400psi (27.6 bar)
Flow RateMax Continuous: 7000 GPM
Max Intermittent8900 GPM
Min70 GP

Also cataloged as: 605AD-16
