Ames Fire & Waterworks7001,70027001
Ames Fire & Waterworks Fire Service Strainer. Model 7001, 7002. Sizes 3" to 10" (80-250mm); Max working pressure 175 psi (12.1 bar); 304 stainless steel screen with 0.25" perforation; AWWA Class D flanges and AWWA C606 grooves. material: Epoxy coated fabricated steel body, 304 stainless steel screen
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Ames Fire & Waterworks
- Catalog no.
- 7001
- Product type
- Plumbing
- MasterFormat
- 22

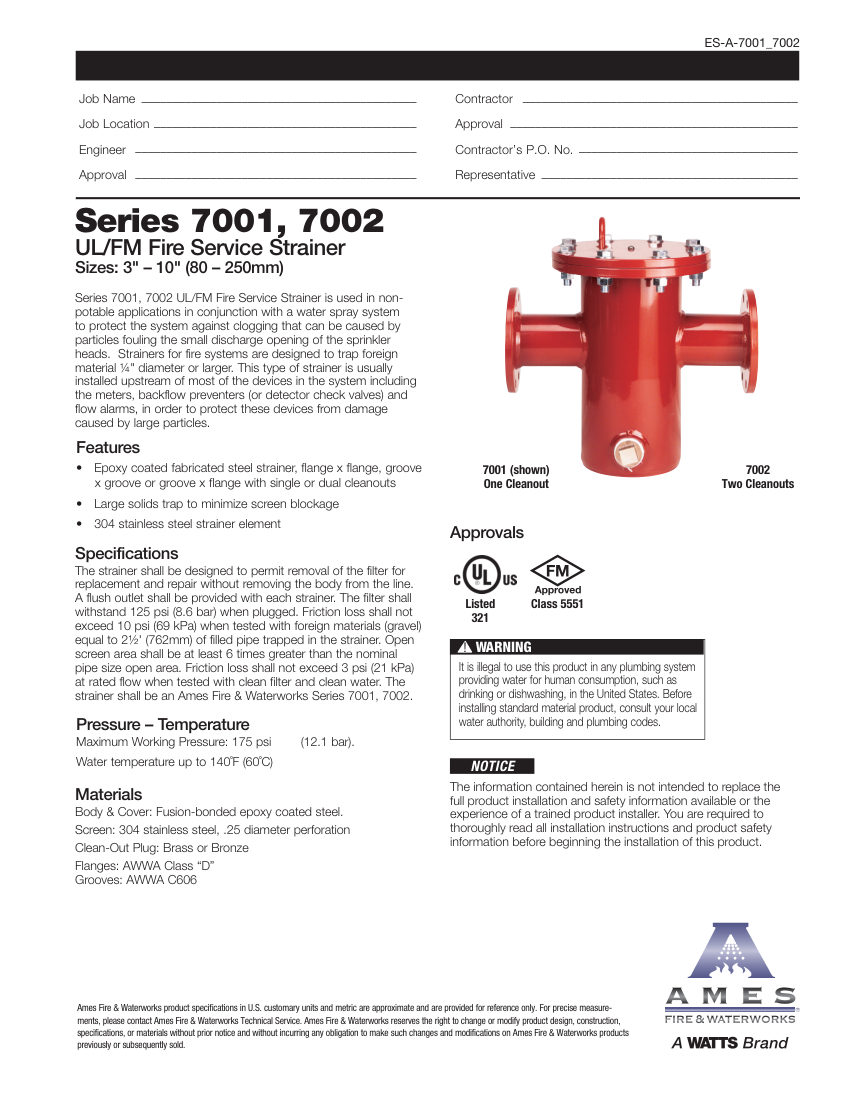

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 7001 |
|---|---|
| Description | Ames Fire & Waterworks Fire Service Strainer. Model 7001, 7002. Sizes 3" to 10" (80-250mm); Max working pressure 175 psi (12.1 bar); 304 stainless steel screen with 0.25" perforation; AWWA Class D flanges and AWWA C606 grooves. material: Epoxy coated fabricated steel body, 304 stainless steel screen |
| Connection size | 3" – 10" (80 – 250mm) |
| End connection | Flange x flange, groove x groove, or groove x flange |
| Pressure Rating | 175 psi (12.1 bar) |
| Finish | Fusion-bonded epoxy coated |
| Mounting | In-line. |
