DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksAmes Air Gaps, Elbows and Test Cocks7014267

Ames Fire & Waterworks Air Gap, Elbow, and Test Cock (Backflow Prevention Accessories). Model 4000B/LF4000B, 400/500, 4000SS/5000SS, 4000CIV. Designed for Reduced Pressure Zone Assemblies; Collects water discharged by relief valve due to check valve fouling; Available in sizes from 1/2" to 10"; Includes vent elbows for vertical installation. material: Brass, Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF7014267.pdfData sheet

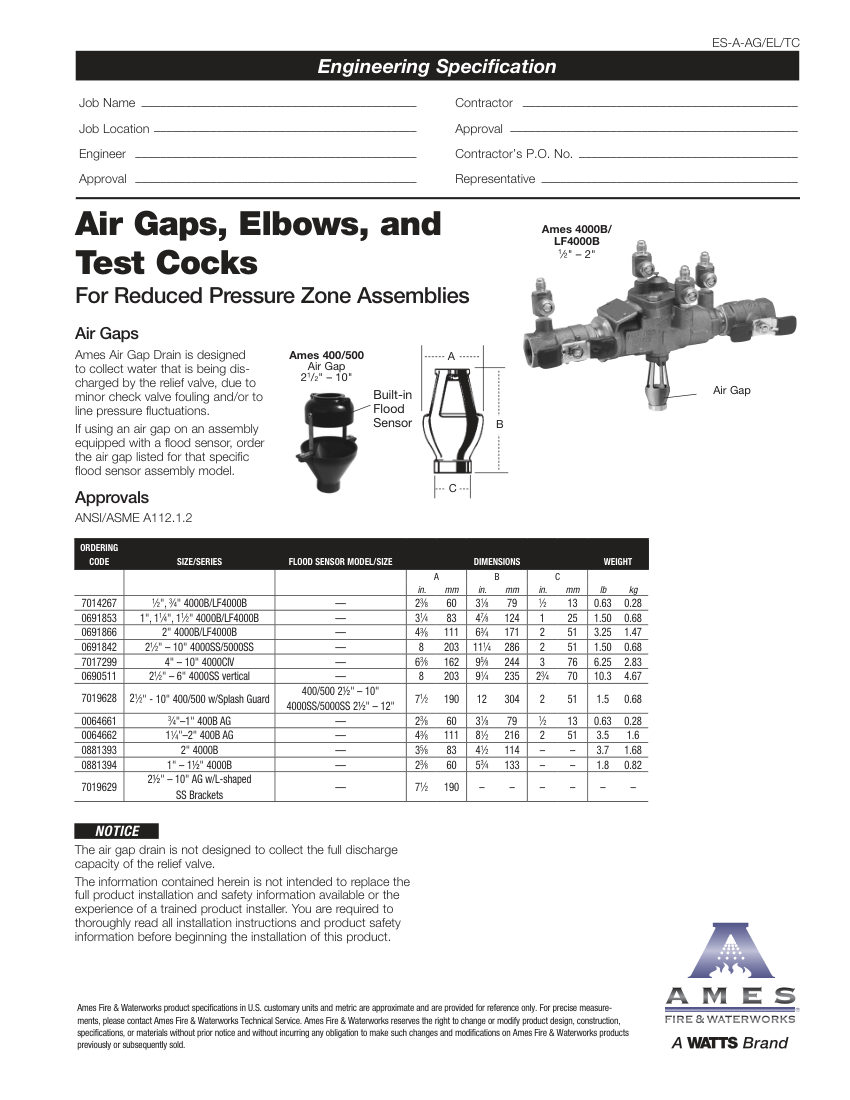

Ames Fire & Waterworks 7014267 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
7014267
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number7014267
DescriptionAmes Fire & Waterworks Air Gap, Elbow, and Test Cock (Backflow Prevention Accessories). Model 4000B/LF4000B, 400/500, 4000SS/5000SS, 4000CIV. Designed for Reduced Pressure Zone Assemblies; Collects water discharged by relief valve due to check valve fouling; Available in sizes from 1/2" to 10"; Includes vent elbows for vertical installation. material: Brass, Stainless Steel
Connection size1/2" – 10"
MountingVertical, Horizontal
DimensionsVaries by model (e.g., 2-3/8" x 3-1/8" for 1/2"-3/4")
ComplianceANSI/ASME A112.1.2.

Also cataloged as: 0691853, 0691866, 0691842, 7017299, 0690511, 7019628, 0064661, 0064662, 0881393, 0881394, 7019629
