Ames Fire & WaterworksAmes Spools7017187

Ames Fire & Waterworks Make Up Spool and Flanges (Ames Spools). Model ES-A-Spools/Flanges. Used for retrofitting backflow preventers; 70% lighter than traditional designs; Extremely compact design; Groove fittings allow integral pipeline adjustment. material: 304 (Schedule 40) Stainless Steel, Carbon Steel, Zinc Plated Carbon Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF7017187.pdfData sheet

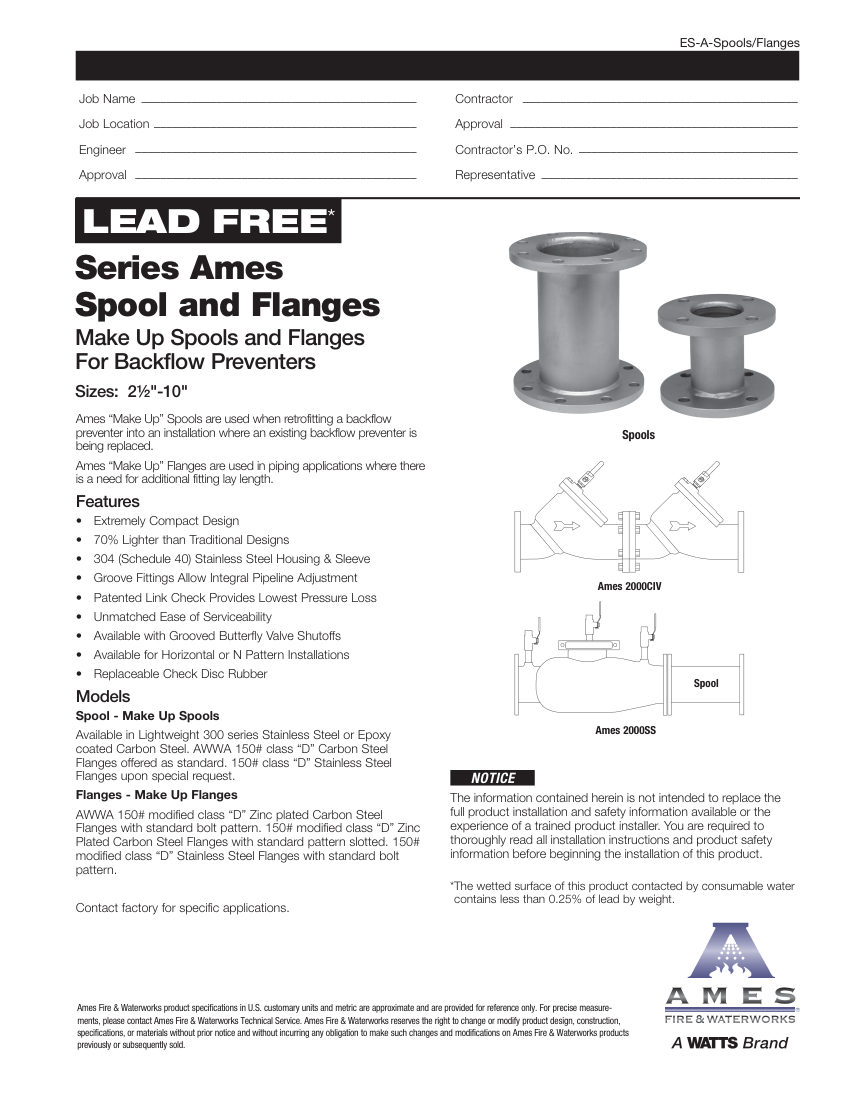

Ames Fire & Waterworks 7017187 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
7017187
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number7017187
DescriptionAmes Fire & Waterworks Make Up Spool and Flanges (Ames Spools). Model ES-A-Spools/Flanges. Used for retrofitting backflow preventers; 70% lighter than traditional designs; Extremely compact design; Groove fittings allow integral pipeline adjustment. material: 304 (Schedule 40) Stainless Steel, Carbon Steel, Zinc Plated Carbon Steel
Connection size2½"-10"
End connectionGrooved, AWWA 150# class "D" Flanges
Pressure Rating150#
FinishZinc Plated (Flanges), Stainless Steel (Spools)
MountingHorizontal or N Pattern.

Also cataloged as: 7017224, 7017245
