DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksAutomatic Control Valve 900GS-16, 900AS-16900

Ames Fire & Waterworks Dual Chamber Basic Valve (Automatic Control Valve). Model 900GS-16, 900AS-16. Full port design with mechanical check feature; Two-piece telescoping disc and diaphragm assembly; Available in Globe (900GS) and Angle (900AS) patterns; Operating temperature up to 300°F (140°C) with EPDM. material: 304L Stainless Steel (Body), 316 Stainless Steel (Trim)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF900.pdfData sheet

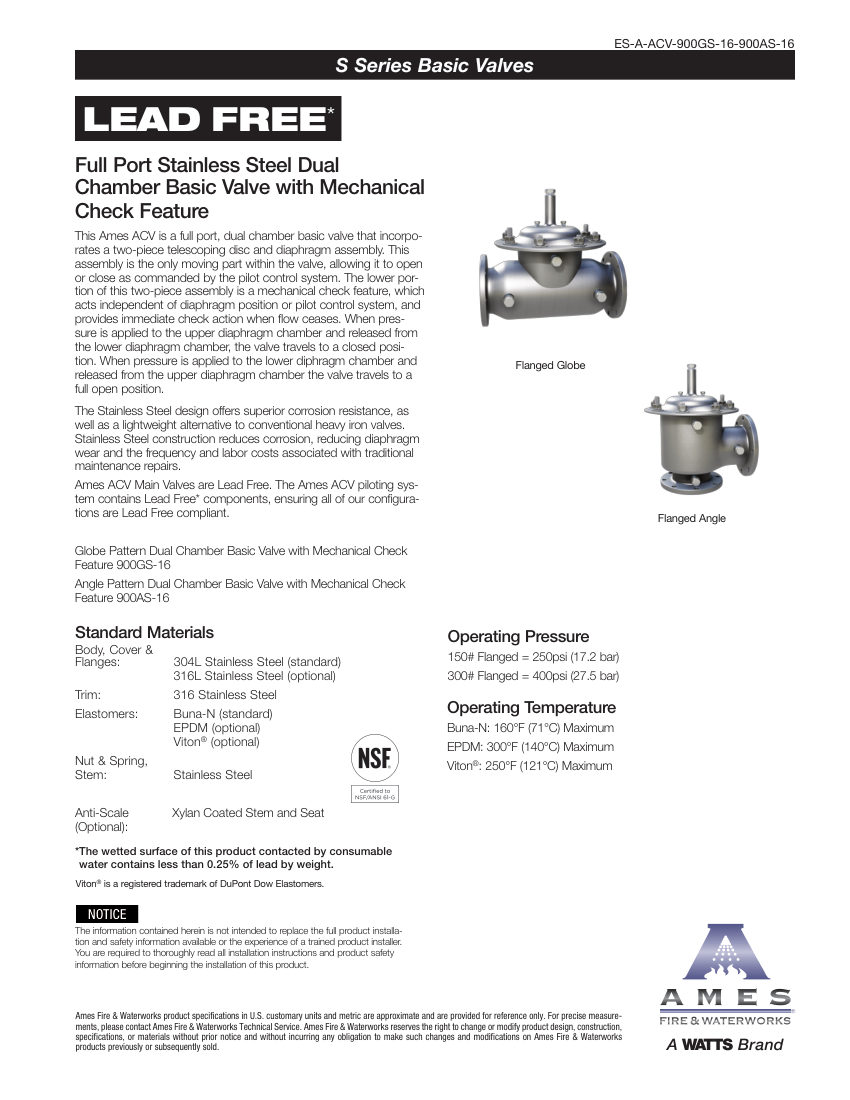

Ames Fire & Waterworks 900 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
900
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number900
DescriptionAmes Fire & Waterworks Dual Chamber Basic Valve (Automatic Control Valve). Model 900GS-16, 900AS-16. Full port design with mechanical check feature; Two-piece telescoping disc and diaphragm assembly; Available in Globe (900GS) and Angle (900AS) patterns; Operating temperature up to 300°F (140°C) with EPDM. material: 304L Stainless Steel (Body), 316 Stainless Steel (Trim)
Connection size4" to 24"
End connectionFlanged
Pressure Rating150# (250 psi), 300# (400 psi)
Flow Rate800-25071 GPM (Max Continuous)
ComplianceLead Free (<0.25% lead).

Also cataloged as: 900GS-16, 900AS-16, 900-GS, 900-AS, 900-4, 900-6, 900-8, 900-10, 900-12, 900-16, 900-20, 900GD-16, 900AD-16, 900-GD, 900-AD, 900-2, 900-21/2, 900-3, 900-14
