Ames Fire & WaterworksAutomatic Control Valve 900DF-A900DF-A

Ames Fire & Waterworks Deluge Valve (Fire Protection Valves). Model 900DF-A. Pneumatic Hydraulic Actuated; Globe Valve Design; Stainless Steel AISI 316 Seat and Stem; F100M Control Pilot System. material: Ductile Iron ASTM A536 65-45-12, Stainless Steel AISI 316

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF900DF-A.pdfData sheet

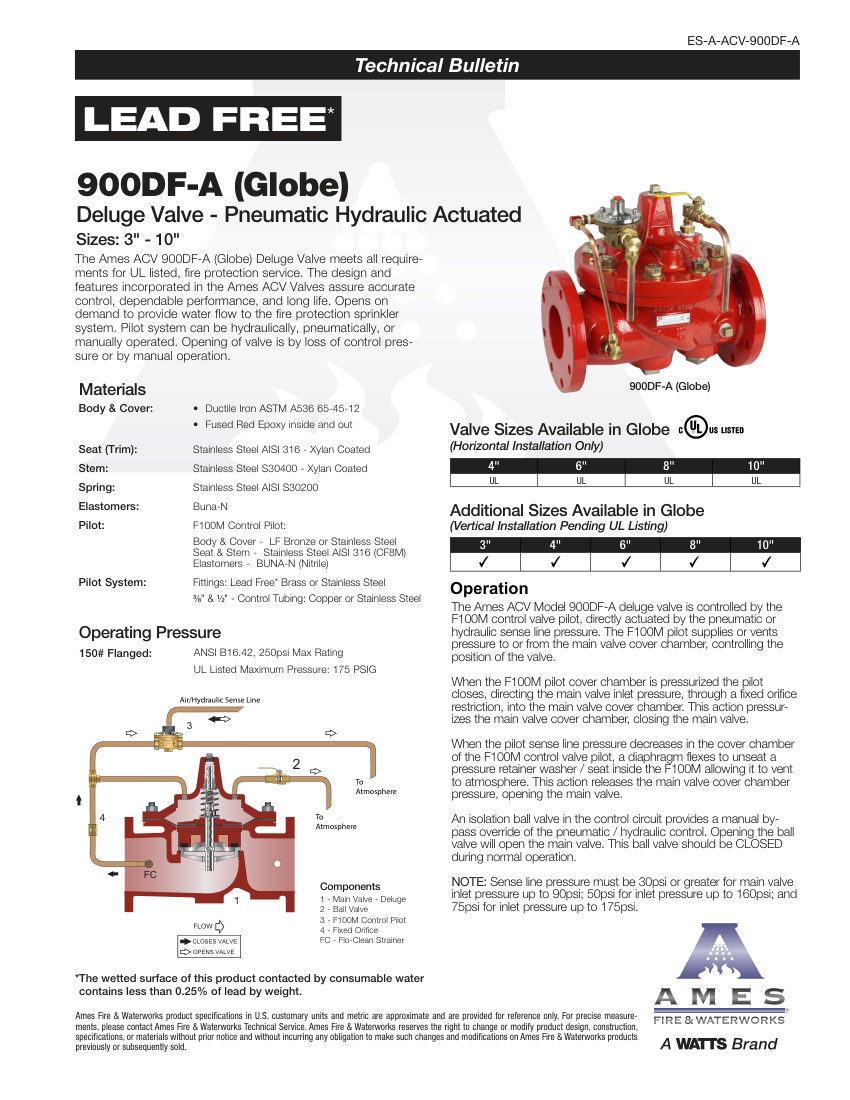

Ames Fire & Waterworks 900DF-A cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
900DF-A
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number900DF-A
DescriptionAmes Fire & Waterworks Deluge Valve (Fire Protection Valves). Model 900DF-A. Pneumatic Hydraulic Actuated; Globe Valve Design; Stainless Steel AISI 316 Seat and Stem; F100M Control Pilot System. material: Ductile Iron ASTM A536 65-45-12, Stainless Steel AISI 316
Connection size3" - 10"
End connectionFlanged
Pressure Rating250psi Max Rating (150# Flanged), UL Listed Max 175 PSIG
FinishFused Red Epoxy inside and out
MountingHorizontal Installation (4"-10"), Vertical Installation (3"-10" pending UL).

Also cataloged as: 900DF-A-3, 900DF-A-4, 900DF-A-6, 900DF-A-8, 900DF-A-10
