DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksAutomatic Control Valve 900DF-B900DF-B

Ames Fire & Waterworks Automatic Control Valve (Deluge Valve) (Fire Protection Valves). Model 900DF-B. Pneumatic, Hydraulic, or Electric Actuated; Stainless Steel AISI 316 Seat and Stem with Xylan Coating; Normally Open 3-Way Solenoid; F100M Control Pilot System. material: Ductile Iron ASTM A536 65-45-12, Stainless Steel AISI 316

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF900DF-B.pdfData sheet

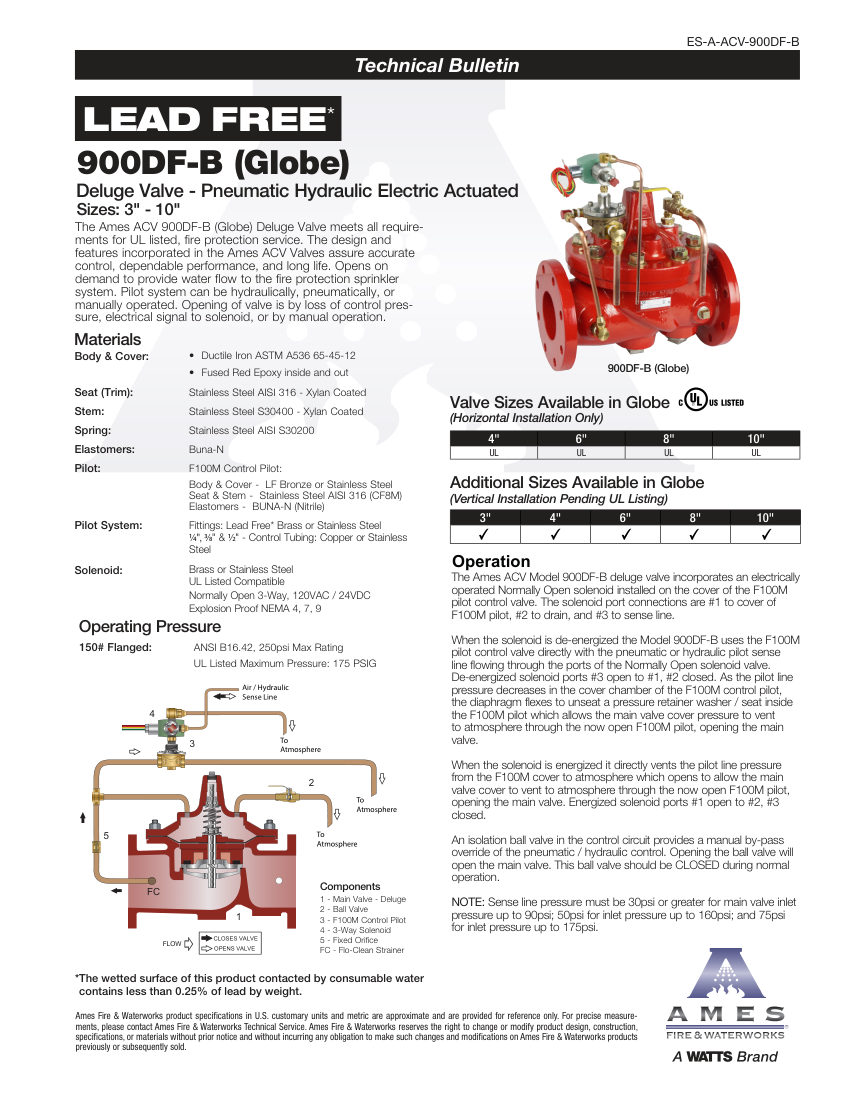

Ames Fire & Waterworks 900DF-B cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
900DF-B
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number900DF-B
DescriptionAmes Fire & Waterworks Automatic Control Valve (Deluge Valve) (Fire Protection Valves). Model 900DF-B. Pneumatic, Hydraulic, or Electric Actuated; Stainless Steel AISI 316 Seat and Stem with Xylan Coating; Normally Open 3-Way Solenoid; F100M Control Pilot System. material: Ductile Iron ASTM A536 65-45-12, Stainless Steel AISI 316
Connection size3" - 10"
End connectionFlanged
Pressure Rating250psi Max Rating (150# Flanged), UL Listed Max 175 PSIG
FinishFused Red Epoxy inside and out
MountingGlobe (Horizontal Installation Only).
