DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & Waterworks900GS-16

Ames Fire & Waterworks Dual Chamber Basic Valve (Automatic Control Valve). Model 900GS-16, 900AS-16. Full port, dual chamber design with two-piece telescoping disc and diaphragm assembly; Incorporates mechanical check feature for immediate check action when flow ceases; Available in Globe (900GS-16) and Angle (900AS-16) patterns; Operating temperature up to 300°F with EPDM elastomers. material: 304L/316L Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF900GS-16.pdfData sheet

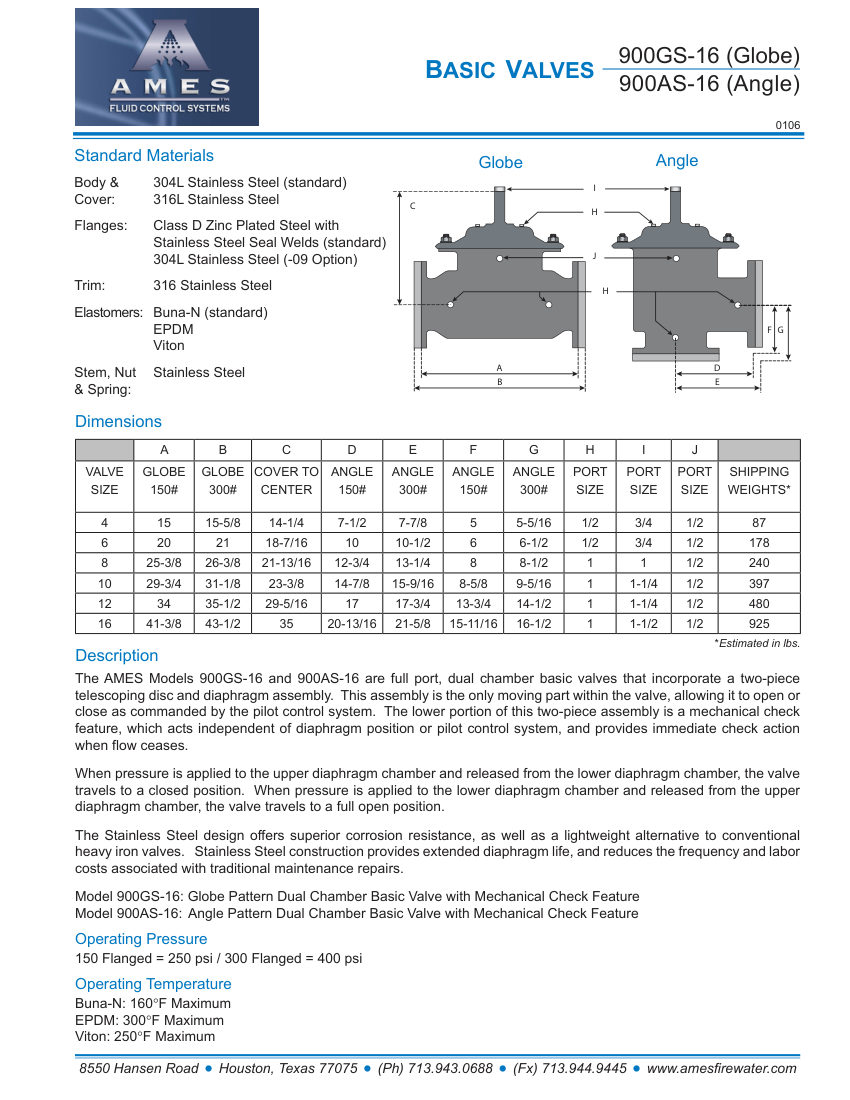

Ames Fire & Waterworks 900GS-16 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
900GS-16
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number900GS-16
DescriptionAmes Fire & Waterworks Dual Chamber Basic Valve (Automatic Control Valve). Model 900GS-16, 900AS-16. Full port, dual chamber design with two-piece telescoping disc and diaphragm assembly; Incorporates mechanical check feature for immediate check action when flow ceases; Available in Globe (900GS-16) and Angle (900AS-16) patterns; Operating temperature up to 300°F with EPDM elastomers. material: 304L/316L Stainless Steel
Connection size4" to 16"
End connectionFlanged
Pressure Rating150# (250 psi) / 300# (400 psi)
Flow Rate800-11100 GPM (Continuous).
