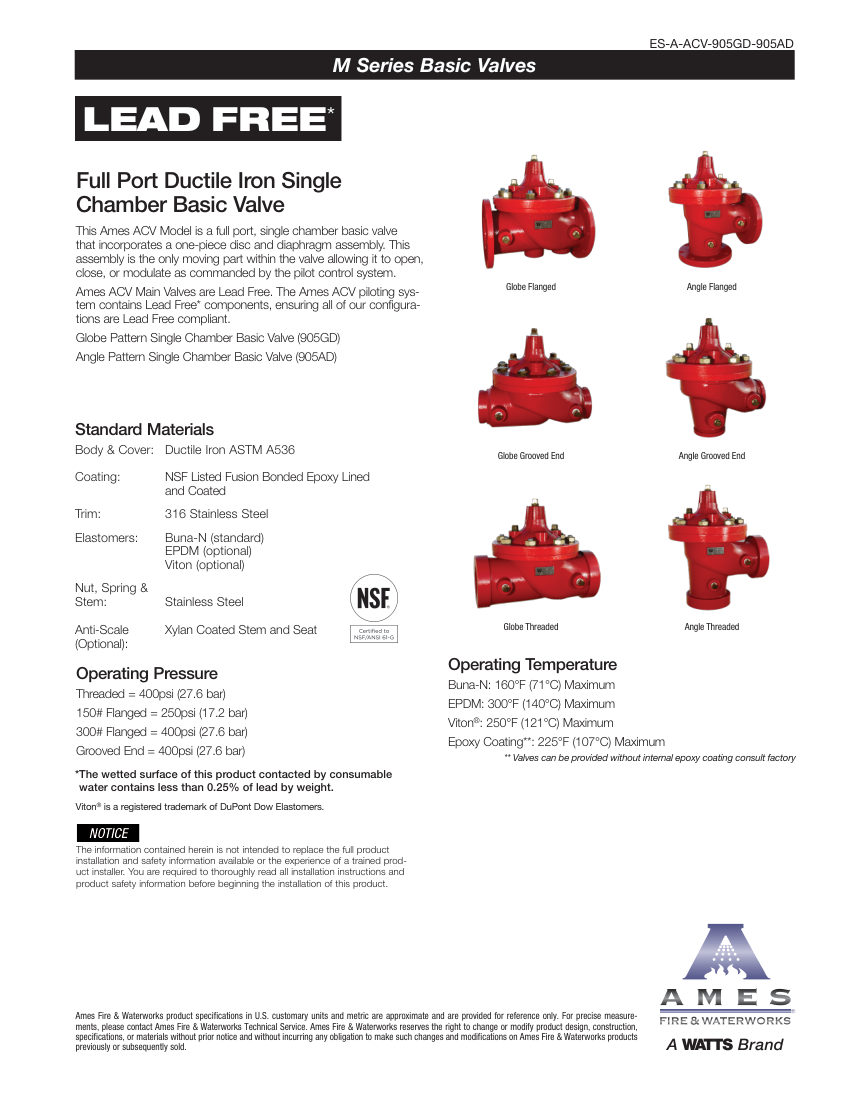

Ames Fire & WaterworksAutomatic Control Valve Full Port 905GD, 905AD905
Ames Fire & Waterworks Full Port Single Chamber Basic Valve (Automatic Control Valve). Model 905GD, 905AD. One-piece disc and diaphragm assembly is the only moving part; Trim made of 316 Stainless Steel
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Ames Fire & Waterworks
- Catalog no.
- 905
- Product type
- Plumbing
- MasterFormat
- 22
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 905 |
|---|---|
| Description | Ames Fire & Waterworks Full Port Single Chamber Basic Valve (Automatic Control Valve). Model 905GD, 905AD. One-piece disc and diaphragm assembly is the only moving part; Trim made of 316 Stainless Steel |
| Elastomer options | Buna-N (std), EPDM, Viton |
| Operating temperature max | 160°F (Buna-N), 300°F (EPDM), 250°F (Viton). material: Ductile Iron ASTM A536 |
| Connection size | 1-1/4" to 16" |
| End connection | Flanged, Grooved, Threaded |
| Pressure Rating | Threaded/Grooved: 400psi; 150# Flanged: 250psi; 300# Flanged: 400psi |
| Flow Rate | Max Continuous: 95-11100 GPM |
| Min | 3-400 GPM |
| Finish | NSF Listed Fusion Bo |
Also cataloged as: 905GD, 905AD, 905-GD, 905-AD
