Ames Fire & WaterworksAutomatic Control Valve 905GD-16905GD-16

Ames Fire & Waterworks Single Chamber Basic Valve (Automatic Control Valve). Model 905GD-16. Full port single chamber design with mechanical check feature; Body and cover made of Ductile Iron ASTM A536; Trim made of 316 Stainless Steel; Elastomers available in Buna-N, EPDM, or Viton. material: Ductile Iron ASTM A536

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF905GD-16.pdfData sheet

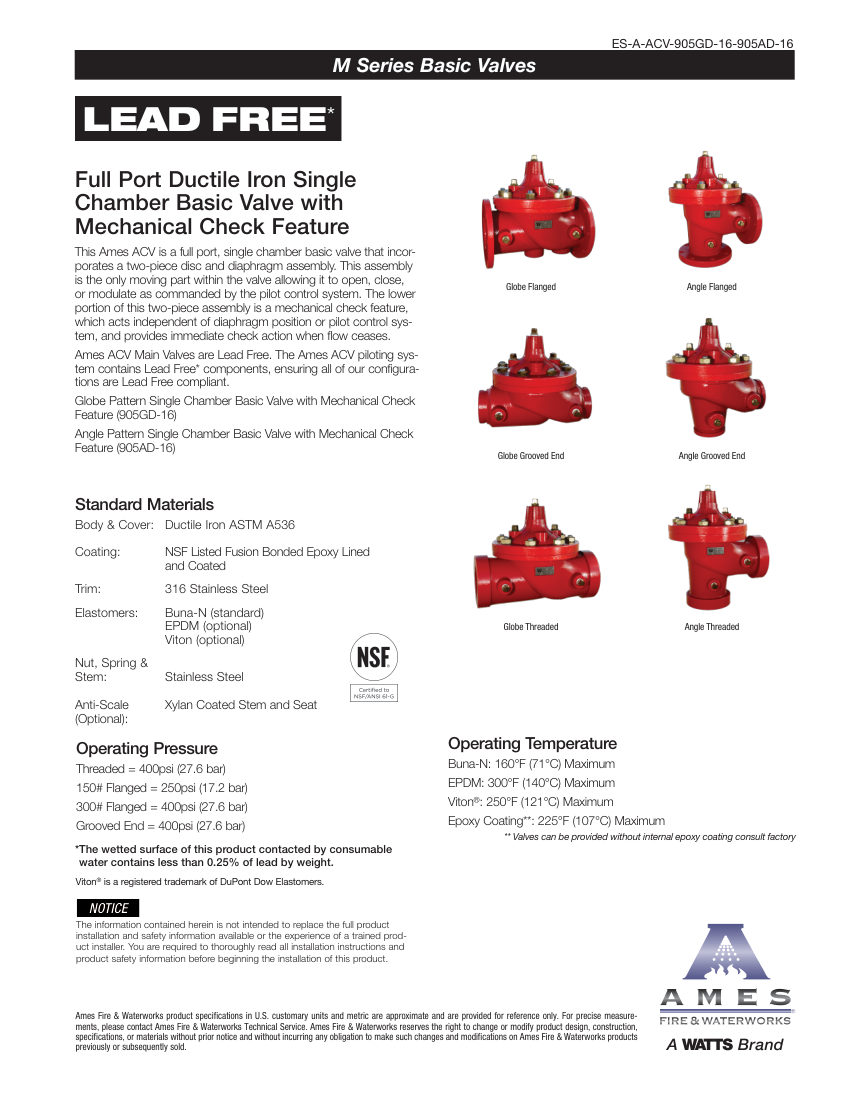

Ames Fire & Waterworks 905GD-16 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
905GD-16
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number905GD-16
DescriptionAmes Fire & Waterworks Single Chamber Basic Valve (Automatic Control Valve). Model 905GD-16. Full port single chamber design with mechanical check feature; Body and cover made of Ductile Iron ASTM A536; Trim made of 316 Stainless Steel; Elastomers available in Buna-N, EPDM, or Viton. material: Ductile Iron ASTM A536
Connection size3-12 inches
End connectionFlanged, Grooved, Threaded
Pressure Rating400psi (Threaded/Grooved), 250psi (150# Flanged), 400psi (300# Flanged)
Flow Rate485-7000 GPM (Max Continuous)
FinishNSF Listed Fusion Bonded Epoxy Lined and Coated.

Also cataloged as: 905AD-16
