Ames Fire & WaterworksAutomatic Control Valve 905GS905GS

Ames Fire & Waterworks Basic Valve (Automatic Control Valve). Model 905GS. Full port, single chamber design with one-piece disc and diaphragm assembly

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF905GS.pdfData sheet

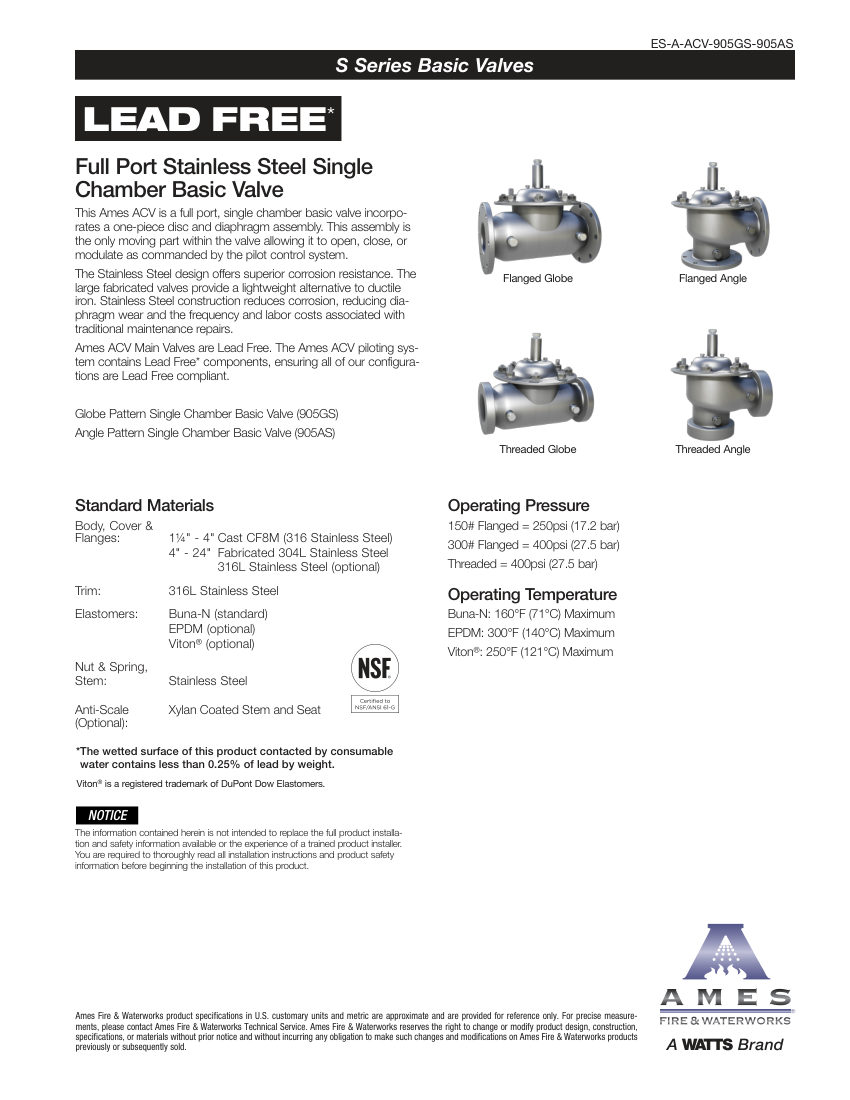

Ames Fire & Waterworks 905GS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
905GS
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number905GS
DescriptionAmes Fire & Waterworks Basic Valve (Automatic Control Valve). Model 905GS. Full port, single chamber design with one-piece disc and diaphragm assembly
Body materialCast CF8M (316 SS) for 1-1/4" to 4", Fabricated 304L SS for 4" to 24"
Trim material316L Stainless Steel
Elastomer optionsBuna-N (standard), EPDM, Viton. material: 316 Stainless Steel (CF8M) / 304L Stainless Steel
Connection size1-1/4" to 24"
End connectionFlanged / Threaded
Pressure Rating150# Flanged (250 psi), 300# Flanged (400 psi), Threaded (400 psi)
Flow RateMax Continuous: 95-25071 GPM
Max Intermittent119-3

Also cataloged as: 905AS
