DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksAutomatic Control Valve 905GS-16905GS-16

Ames Fire & Waterworks Single Chamber Basic Valve (Automatic Control Valve). Model 905GS-16. Full port, single chamber design with two-piece telescoping disc and diaphragm assembly; Includes mechanical check feature for immediate check action when flow ceases; Trim made of 316L Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF905GS-16.pdfData sheet

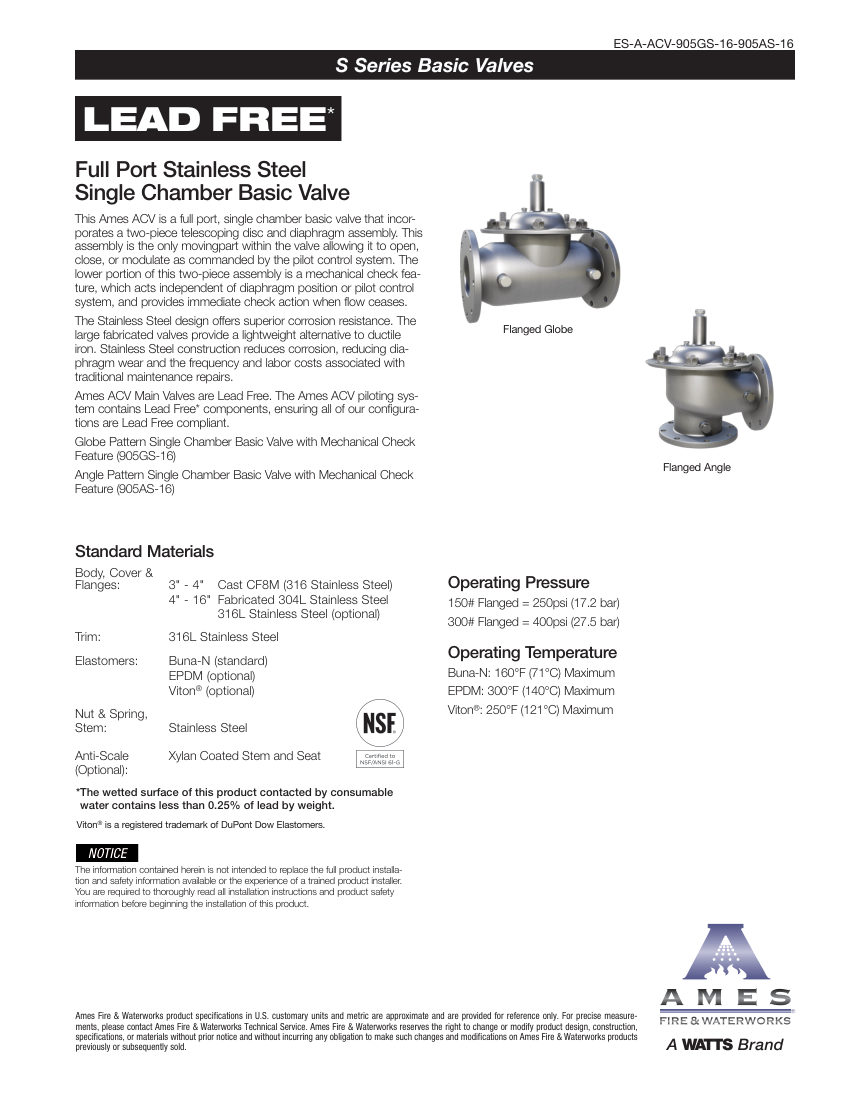

Ames Fire & Waterworks 905GS-16 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
905GS-16
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number905GS-16
DescriptionAmes Fire & Waterworks Single Chamber Basic Valve (Automatic Control Valve). Model 905GS-16. Full port, single chamber design with two-piece telescoping disc and diaphragm assembly; Includes mechanical check feature for immediate check action when flow ceases; Trim made of 316L Stainless Steel
ElastomersBuna-N (standard), EPDM or Viton (optional). material: 316 Stainless Steel (Cast CF8M 3-4", Fabricated 304L 4-16")
Connection size3" - 16"
End connectionFlanged
Pressure Rating150# (250 psi) / 300# (400 psi)
Flow RateMax Continuous: 485-11100 GPM
Max Intermittent590-14100 GPM; com

Also cataloged as: 905AS-16
