Ames Fire & WaterworksAutomatic Control Valve 910GS-11910-11

Ames Fire & Waterworks Automatic Control Valve (Pressure Reducing Valve). Model 910GS-11. Pilot operated diaphragm valve with downstream surge control; Hydraulically operated, single diaphragm actuated; Main valve body fabricated from 304L stainless steel; Diaphragm constructed of nylon reinforced Buna-N. material: 304L Stainless Steel body, Class D zinc plated steel flanges, Buna-N diaphragm

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF910-11.pdfData sheet

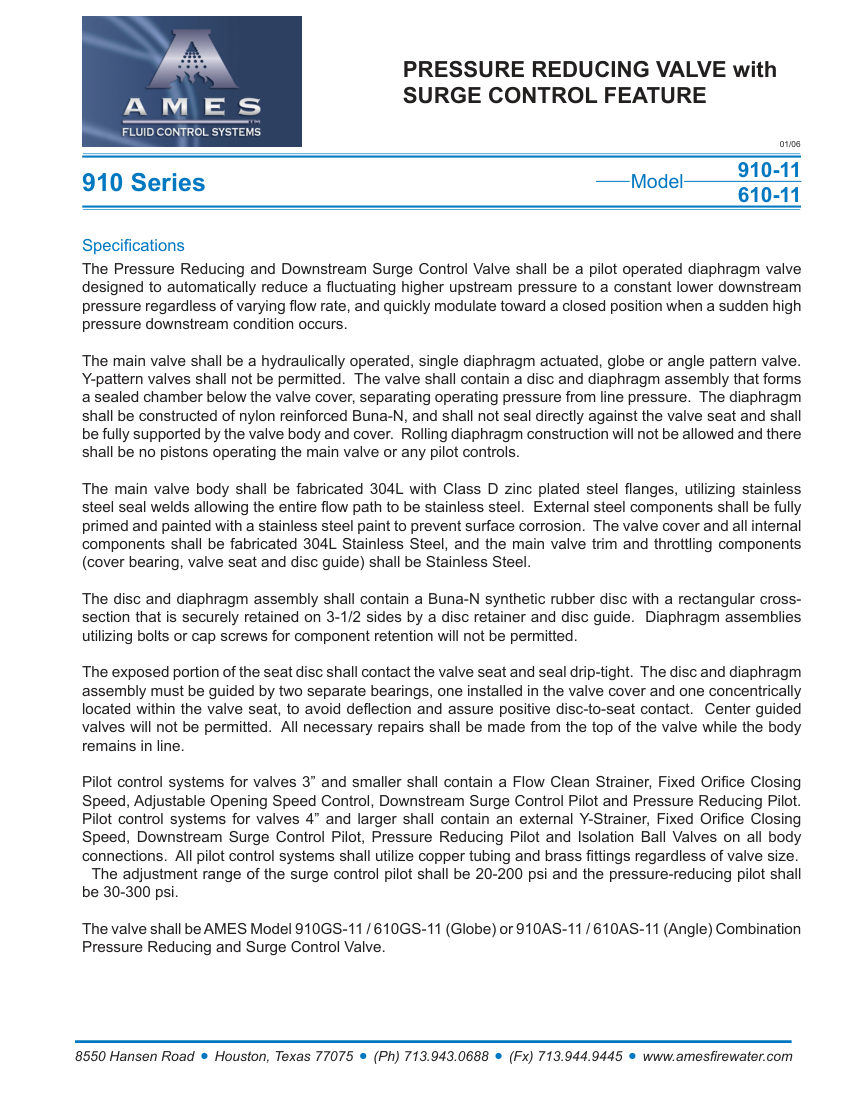

Ames Fire & Waterworks 910-11 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
910-11
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number910-11
DescriptionAmes Fire & Waterworks Automatic Control Valve (Pressure Reducing Valve). Model 910GS-11. Pilot operated diaphragm valve with downstream surge control; Hydraulically operated, single diaphragm actuated; Main valve body fabricated from 304L stainless steel; Diaphragm constructed of nylon reinforced Buna-N. material: 304L Stainless Steel body, Class D zinc plated steel flanges, Buna-N diaphragm
End connectionFlanged
Pressure RatingSurge control 20-200 psi, Pressure reducing 30-300 psi
FinishStainless steel paint on external steel components
MountingGlobe or angle pattern.

Also cataloged as: 610-11, 910GS-11, 610GS-11, 910AS-11, 610AS-11, 910GD-11, 610GD-11, 910AD-11, 610AD-11
