DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksAutomatic Control Valve 910GS-15910-15

Ames Fire & Waterworks Pressure Reducing and Solenoid (On-Off) Control Valve (Control Valve). Model 910GS-15. Pilot operated diaphragm valve; Hydraulically operated single diaphragm actuated; Nylon reinforced Buna-N diaphragm; Includes 2-Way Solenoid and Pressure Reducing Pilot. material: 304L Stainless Steel body, Class D zinc plated steel flanges, Buna-N diaphragm

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF910-15.pdfData sheet

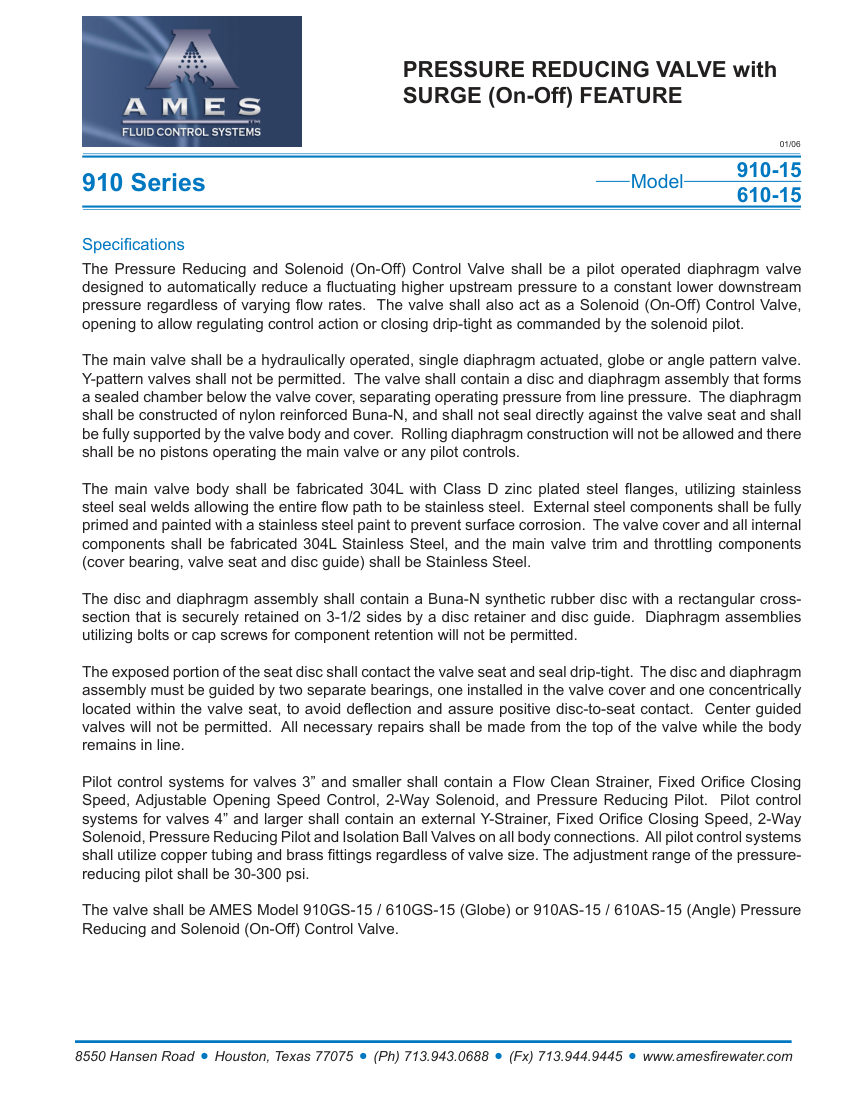

Ames Fire & Waterworks 910-15 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
910-15
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number910-15
DescriptionAmes Fire & Waterworks Pressure Reducing and Solenoid (On-Off) Control Valve (Control Valve). Model 910GS-15. Pilot operated diaphragm valve; Hydraulically operated single diaphragm actuated; Nylon reinforced Buna-N diaphragm; Includes 2-Way Solenoid and Pressure Reducing Pilot. material: 304L Stainless Steel body, Class D zinc plated steel flanges, Buna-N diaphragm
End connectionFlanged
Pressure Rating30-300 psi adjustment range
FinishStainless steel paint on external steel components
MountingGlobe or angle pattern.

Also cataloged as: 610-15, 910GS-15, 610GS-15, 910AS-15, 610AS-15
