Ames Fire & WaterworksAutomatic Control Valve LF910GD-17910-17

Ames Fire & Waterworks Automatic Control Valve (Pressure Reducing Valve). Model 910GD-17. Pilot operated diaphragm valve with return flow feature; Single diaphragm actuated, globe or angle pattern; Diaphragm constructed of nylon reinforced Buna-N; Main valve body and cover are Ductile Iron ASTM A536. material: Ductile Iron ASTM A536, CF8M (316) Stainless Steel, Nylon Reinforced Buna-N

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF910-17.pdfData sheet

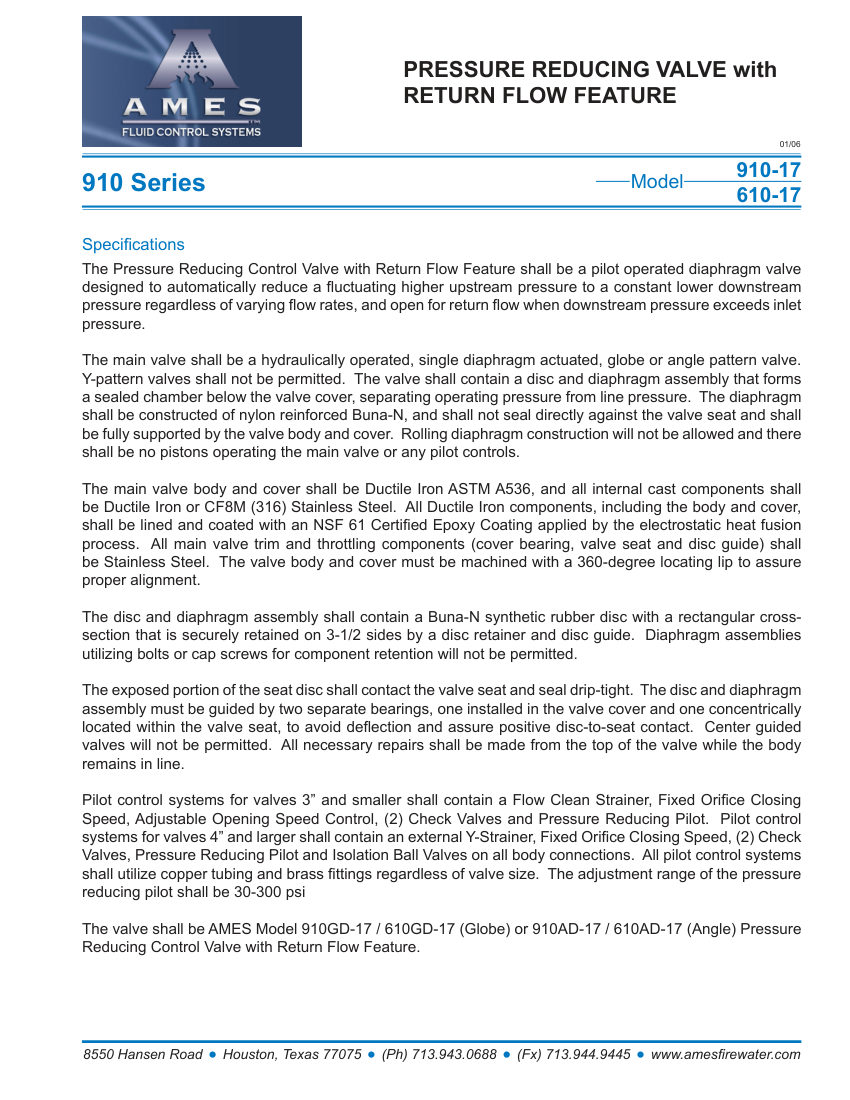

Ames Fire & Waterworks 910-17 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
910-17
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number910-17
DescriptionAmes Fire & Waterworks Automatic Control Valve (Pressure Reducing Valve). Model 910GD-17. Pilot operated diaphragm valve with return flow feature; Single diaphragm actuated, globe or angle pattern; Diaphragm constructed of nylon reinforced Buna-N; Main valve body and cover are Ductile Iron ASTM A536. material: Ductile Iron ASTM A536, CF8M (316) Stainless Steel, Nylon Reinforced Buna-N
Pressure Rating30-300 psi adjustment range
FinishNSF 61 Certified Epoxy Coating
MountingGlobe or Angle pattern
ComplianceNSF 61.

Also cataloged as: 910GD-17, 610GD-17, 910AD-17, 610AD-17
