DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksAutomatic Control Valve 910GS-01910 Series

Ames Fire & Waterworks Automatic Control Valve (Pressure Reducing Valve). Model 910GS-01. Pilot operated diaphragm valve with hydraulic check feature; Reduces fluctuating upstream pressure to constant downstream pressure; Closes drip-tight when downstream pressure exceeds upstream pressure; Main valve body fabricated from 304L stainless steel. material: 304L Stainless Steel body, Class D zinc plated steel flanges, Buna-N diaphragm

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF910-Series.pdfData sheet

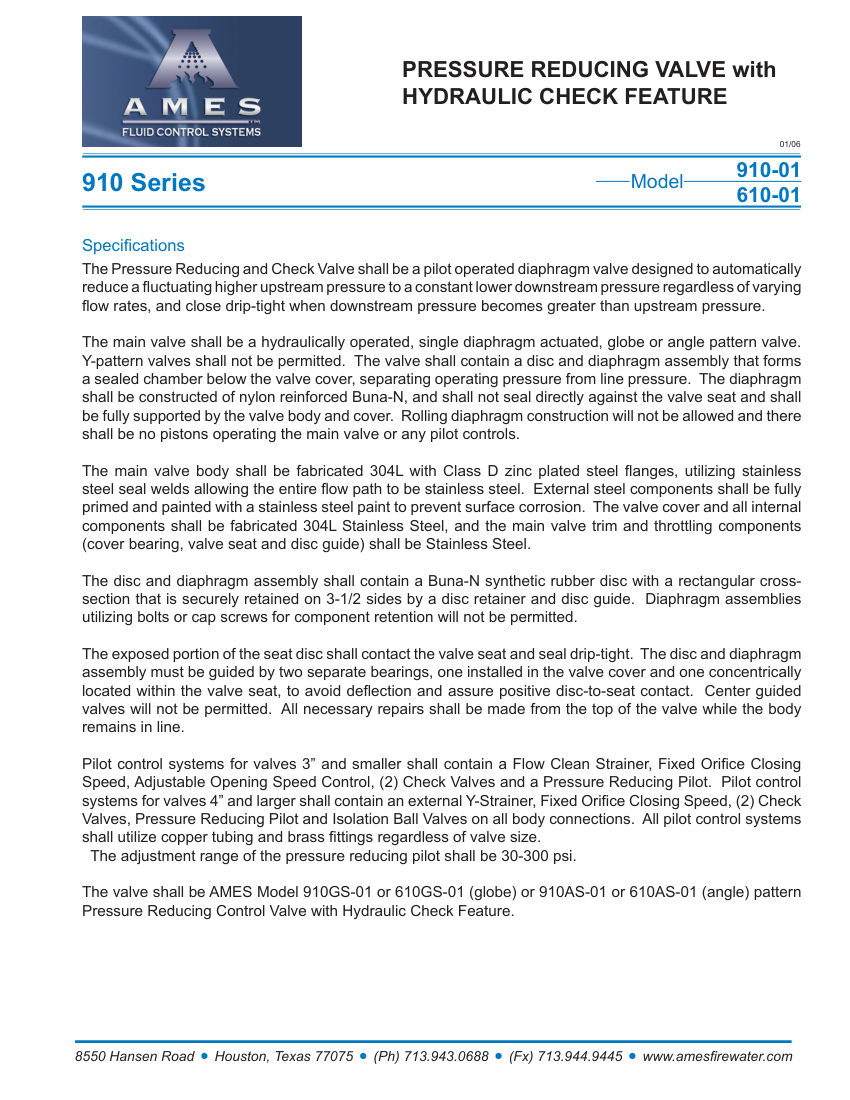

Ames Fire & Waterworks 910 Series cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
910 Series
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number910 Series
DescriptionAmes Fire & Waterworks Automatic Control Valve (Pressure Reducing Valve). Model 910GS-01. Pilot operated diaphragm valve with hydraulic check feature; Reduces fluctuating upstream pressure to constant downstream pressure; Closes drip-tight when downstream pressure exceeds upstream pressure; Main valve body fabricated from 304L stainless steel. material: 304L Stainless Steel body, Class D zinc plated steel flanges, Buna-N diaphragm
End connectionFlanged
Pressure Rating30-300 psi adjustment range
FinishStainless steel paint on external steel components
MountingGlobe or angle pattern.

Also cataloged as: 910-01, 610-01, 910GS-01, 610GS-01, 910AS-01, 610AS-01, 912-09-11, 612-09-11, 912GS-09-11, 612GS-09-11, 912AS-09-11, 610AS-09-11
