DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksAutomatic Control Valve LF910GD-48910GD-48

Ames Fire & Waterworks Automatic Control Valve (Pressure Reducing Valve). Model 910GD-48. Pilot operated diaphragm valve with low flow by-pass; Main valve body and cover are Ductile Iron ASTM A536; Diaphragm is nylon reinforced Buna-N; Low Flow By-Pass adjustment range is 20-200 psi. material: Ductile Iron ASTM A536, CF8M (316) Stainless Steel, Nylon Reinforced Buna-N

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF910GD-48.pdfData sheet

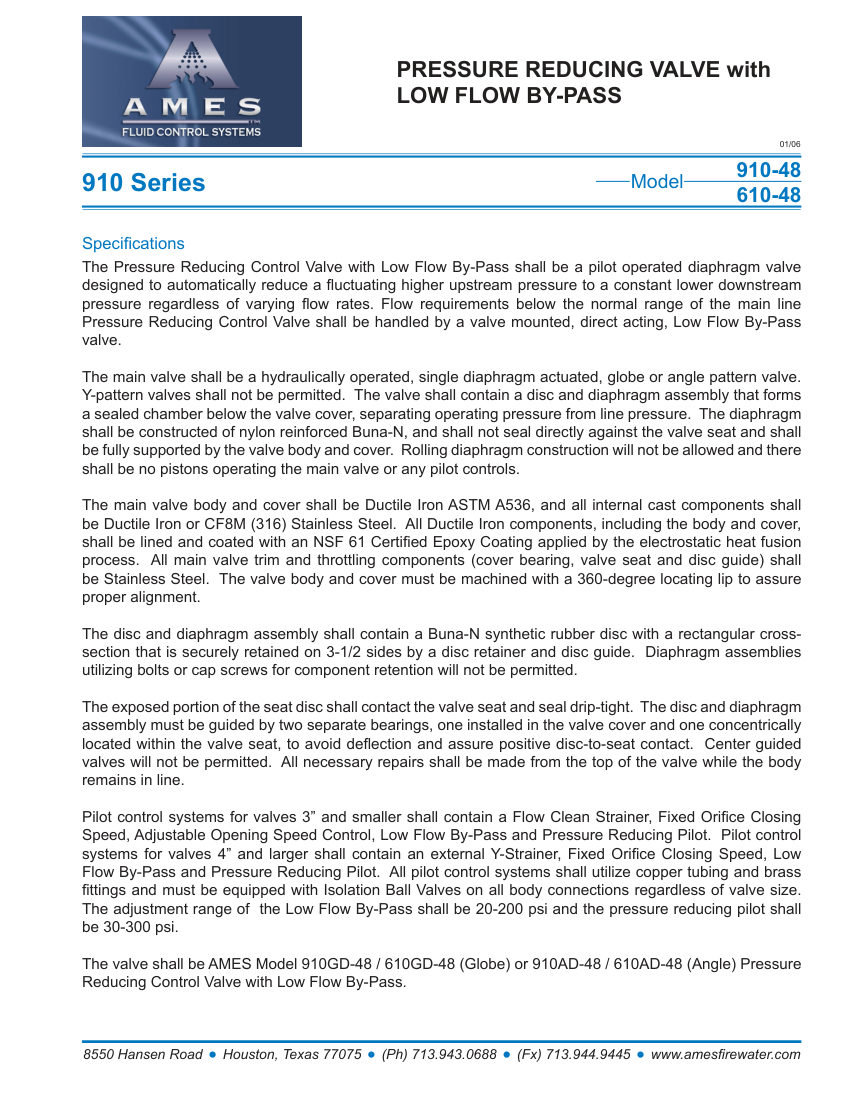

Ames Fire & Waterworks 910GD-48 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
910GD-48
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number910GD-48
DescriptionAmes Fire & Waterworks Automatic Control Valve (Pressure Reducing Valve). Model 910GD-48. Pilot operated diaphragm valve with low flow by-pass; Main valve body and cover are Ductile Iron ASTM A536; Diaphragm is nylon reinforced Buna-N; Low Flow By-Pass adjustment range is 20-200 psi. material: Ductile Iron ASTM A536, CF8M (316) Stainless Steel, Nylon Reinforced Buna-N
Connection size48
Pressure Rating30-300 psi
FinishNSF 61 Certified Epoxy Coating
MountingGlobe or Angle Pattern
ComplianceNSF 61.

Also cataloged as: 610GD-48, 910AD-48, 610AD-48
