DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksAutomatic Control Valve LF912GD-11912

Ames Fire & Waterworks Pressure Reducing and Sustaining Valve with Surge Control (Control Valve). Model 912GD-11. Pilot operated diaphragm valve; Hydraulically operated, single diaphragm actuated; Ductile Iron body lined with NSF 61 Epoxy; Stainless Steel trim and throttling components. material: Ductile Iron ASTM A536 body/cover, CF8M (316) Stainless Steel internal components, Buna-N diaphragm

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF912.pdfData sheet

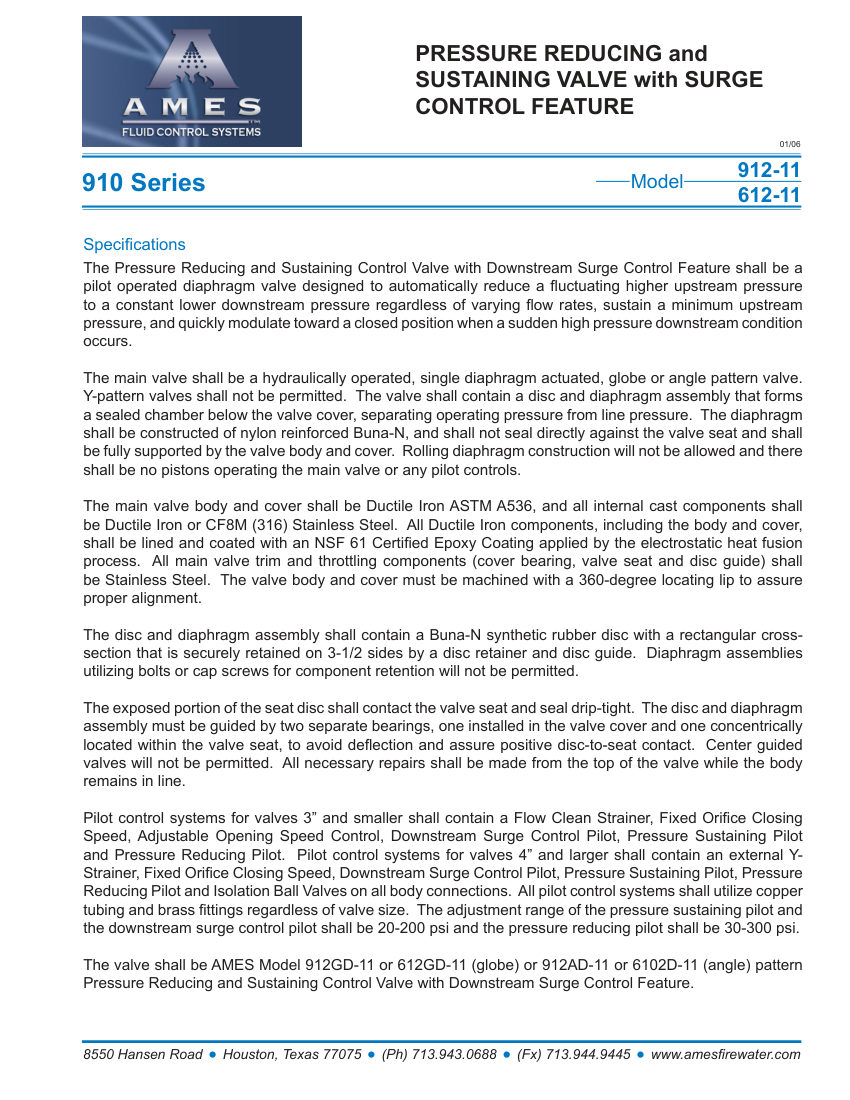

Ames Fire & Waterworks 912 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
912
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number912
DescriptionAmes Fire & Waterworks Pressure Reducing and Sustaining Valve with Surge Control (Control Valve). Model 912GD-11. Pilot operated diaphragm valve; Hydraulically operated, single diaphragm actuated; Ductile Iron body lined with NSF 61 Epoxy; Stainless Steel trim and throttling components. material: Ductile Iron ASTM A536 body/cover, CF8M (316) Stainless Steel internal components, Buna-N diaphragm
Pressure RatingSustaining/Surge Pilot: 20-200 psi, Reducing Pilot: 30-300 psi
FinishNSF 61 Certified Epoxy Coating
MountingGlobe or Angle pattern
ComplianceNSF 61.

Also cataloged as: 912-11, 612-11, 912GD-11, 612GD-11, 912AD-11, 6102D-11, 612, 912GS, 612GS, 912AS, 612AS
