DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksAutomatic Control Valve 912GS-11912-11

Ames Fire & Waterworks Pressure Reducing and Sustaining Valve with Surge Control (Control Valve). Model 912GS-11. Pilot operated diaphragm valve; Hydraulically operated single diaphragm actuated; Downstream surge control feature; Stainless steel flow path. material: 304L Stainless Steel body, Class D zinc plated steel flanges, Buna-N diaphragm

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF912-11.pdfData sheet

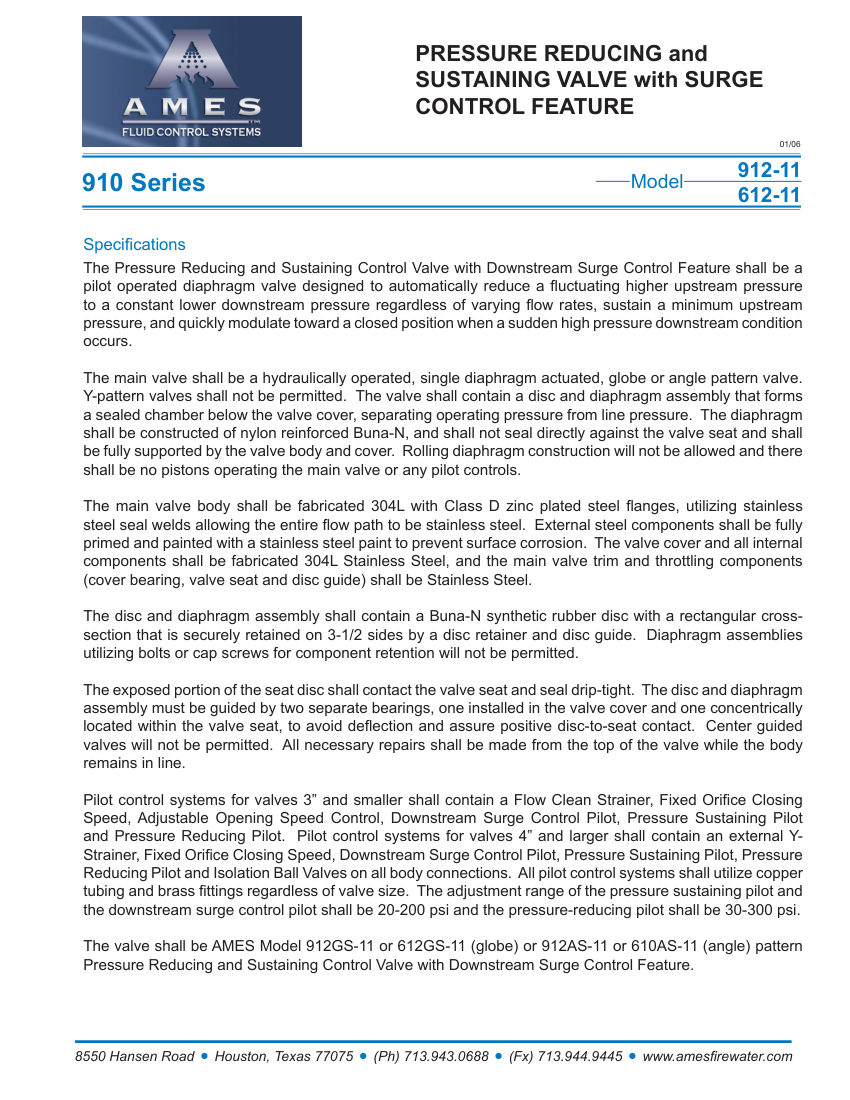

Ames Fire & Waterworks 912-11 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
912-11
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number912-11
DescriptionAmes Fire & Waterworks Pressure Reducing and Sustaining Valve with Surge Control (Control Valve). Model 912GS-11. Pilot operated diaphragm valve; Hydraulically operated single diaphragm actuated; Downstream surge control feature; Stainless steel flow path. material: 304L Stainless Steel body, Class D zinc plated steel flanges, Buna-N diaphragm
End connectionFlanged
Pressure RatingAdjustment range 20-200 psi (sustaining/surge), 30-300 psi (reducing)
FinishStainless steel paint on external steel components
MountingGlobe or Angle pattern.

Also cataloged as: 612-11, 912GS-11, 612GS-11, 912AS-11, 610AS-11
