Ames Fire & WaterworksAutomatic Control Valve 920GF, 920AF920

Ames Fire & Waterworks Automatic Control Valve (Fire Protection Valves). Model 920GF / 920AF. Globe (920GF) and Angle (920AF) patterns; Lead Free construction; Pilot spring range 20-200 psi (150#) and 100-300 psi (300#); Stainless Steel seat and stem with Xylan coating. material: Ductile Iron ASTM A536 65-45-12, Stainless Steel AISI 316, Stainless Steel S30400, Stainless Steel AISI S30200, Buna-N

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF920.pdfData sheet

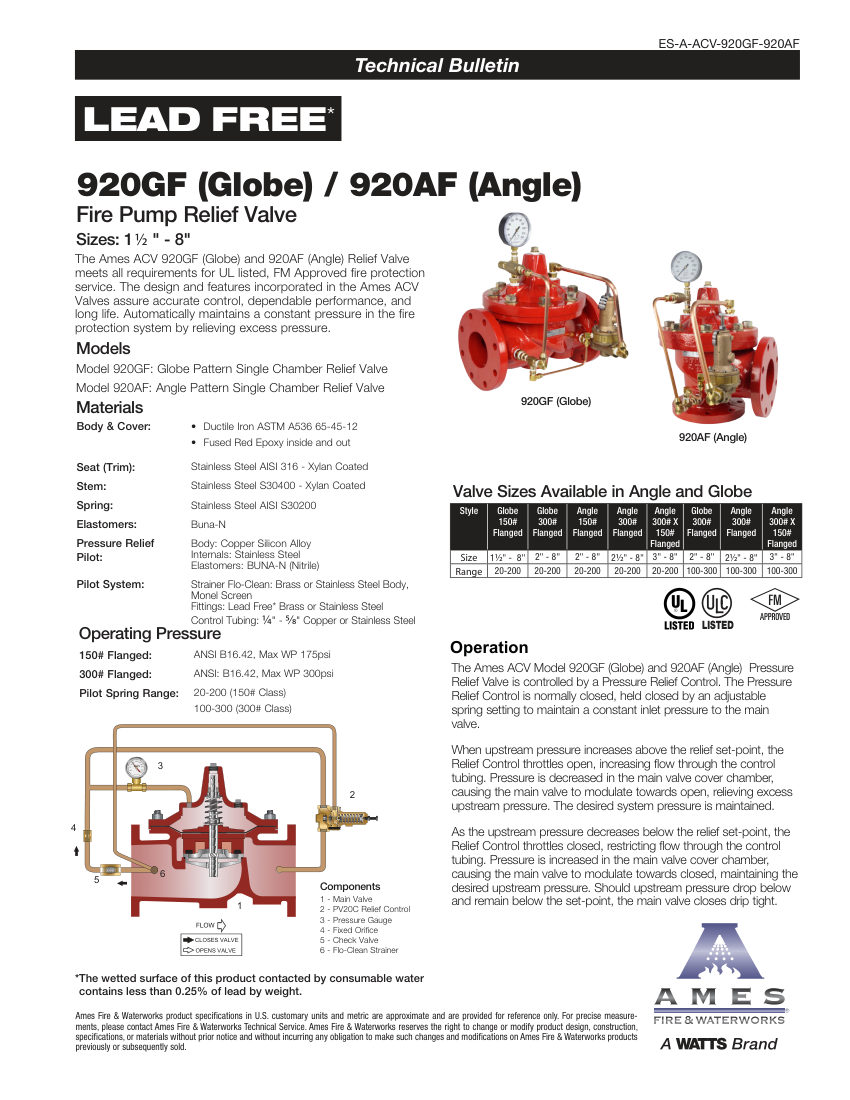

Ames Fire & Waterworks 920 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
920
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number920
DescriptionAmes Fire & Waterworks Automatic Control Valve (Fire Protection Valves). Model 920GF / 920AF. Globe (920GF) and Angle (920AF) patterns; Lead Free construction; Pilot spring range 20-200 psi (150#) and 100-300 psi (300#); Stainless Steel seat and stem with Xylan coating. material: Ductile Iron ASTM A536 65-45-12, Stainless Steel AISI 316, Stainless Steel S30400, Stainless Steel AISI S30200, Buna-N
Connection size1 1/2" - 8"
End connectionFlanged
Pressure Rating150# (Max WP 175psi), 300# (Max WP 300psi)
FinishFused Red Epoxy inside and out
ComplianceUL Listed, FM Approved, ANSI B16.4

Also cataloged as: 920-GF, 920-AF, 920-150F, 920-300F, 920-300X150F, 920-1-1/2, 920-2, 920-2-1/2, 920-3, 920-4, 920-6, 920GS-15, 620GS-15, 920AS-15, 620AS-15, 920-01-15, 620-01-15, 920GS-01-15, 620GS-01-15, 920AS-01-15, 620AS-01-15, 920GS-01, 620GS-01, 920AS-01, 620AS-01, 920GD, 620GD, 920AD, 620AD
