DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksAutomatic Control Valve 920GS-01-09-15920-01-09-15

Ames Fire & Waterworks Pressure Sustaining Control Valve with Solenoid and Hydraulic Check (Control Valve). Model 920GS-01-09-15. Pilot operated diaphragm valve; Nylon reinforced Buna-N diaphragm; Stainless steel pilot control system; Includes 2-Way Solenoid Pilot and Pressure Sustaining Pilot. material: 304L Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF920-01-09-15.pdfData sheet

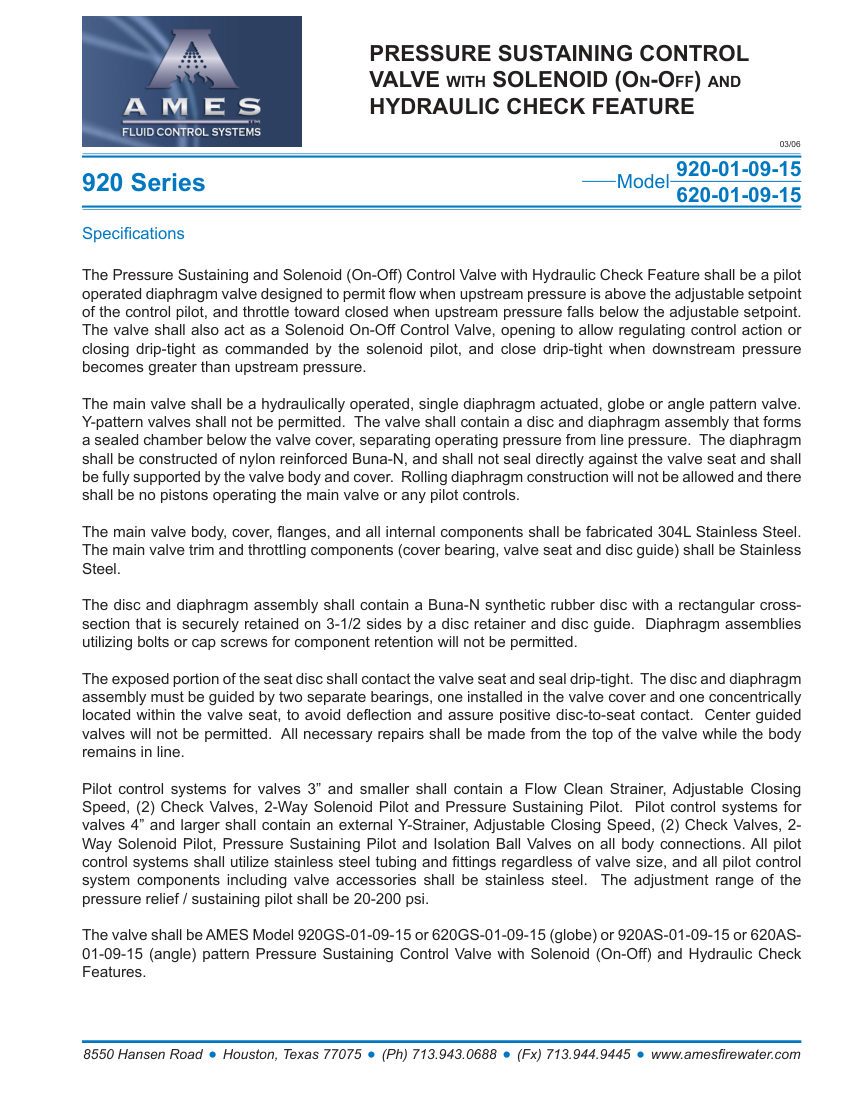

Ames Fire & Waterworks 920-01-09-15 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
920-01-09-15
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number920-01-09-15
DescriptionAmes Fire & Waterworks Pressure Sustaining Control Valve with Solenoid and Hydraulic Check (Control Valve). Model 920GS-01-09-15. Pilot operated diaphragm valve; Nylon reinforced Buna-N diaphragm; Stainless steel pilot control system; Includes 2-Way Solenoid Pilot and Pressure Sustaining Pilot. material: 304L Stainless Steel
Connection size1-1/2" (inferred from model suffix 09-15)
End connectionFlanged
Pressure Rating20-200 psi (adjustment range)
MountingGlobe or Angle pattern.

Also cataloged as: 620-01-09-15, 920GS-01-09-15, 620GS-01-09-15, 920AS-01-09-15, 620AS-01-09-15
