Ames Fire & WaterworksAutomatic Control Valve 920A-UL920A-UL

Ames Fire & Waterworks Fire Pump Relief Valve (Fire Protection Valves). Model 920A-UL. Angle Pattern Single Chamber Design; Stainless Steel CF8M Seat with Xylan Coating; Stainless Steel S30400 Stem with Xylan Coating; Buna-N Elastomers. material: Ductile Iron ASTM A536 Body, Stainless Steel CF8M Seat, Stainless Steel S30400 Stem

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF920A-UL.pdfData sheet

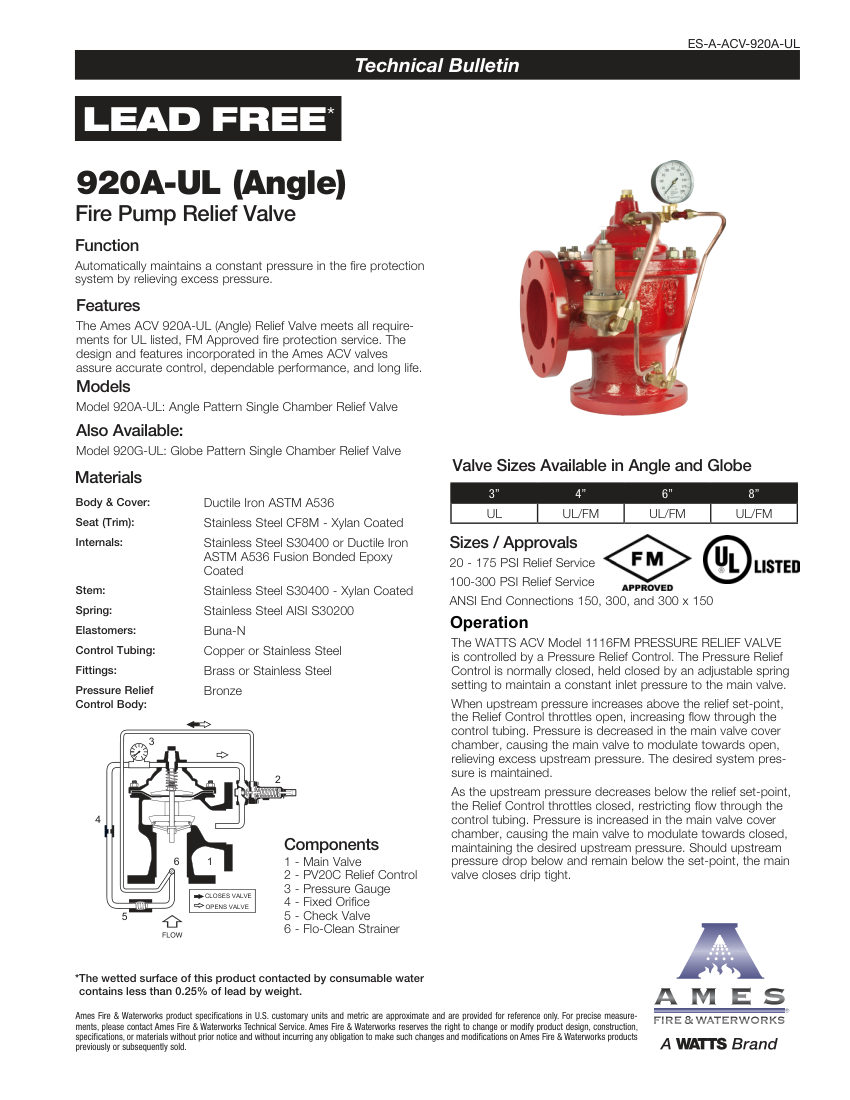

Ames Fire & Waterworks 920A-UL cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
920A-UL
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number920A-UL
DescriptionAmes Fire & Waterworks Fire Pump Relief Valve (Fire Protection Valves). Model 920A-UL. Angle Pattern Single Chamber Design; Stainless Steel CF8M Seat with Xylan Coating; Stainless Steel S30400 Stem with Xylan Coating; Buna-N Elastomers. material: Ductile Iron ASTM A536 Body, Stainless Steel CF8M Seat, Stainless Steel S30400 Stem
Connection size3", 4", 6", 8"
End connectionANSI
Pressure Rating20-175 PSI, 100-300 PSI
MountingAngle Pattern
ComplianceUL Listed, FM Approved, Lead Free.

Also cataloged as: 920G-UL
