DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksAutomatic Control Valve 933GS-09933GS-09

Ames Fire & Waterworks Electronic Control Valve (930 Series). Model 933GS-09 / 633GS-09 (Globe) or 933AS-09 / 633AS-09 (Angle). Pilot operated diaphragm valve for electric positioning; Controls flow, pressure, level, or temperature; Single diaphragm actuated globe or angle pattern; Includes two 2-Way Solenoid Pilots with manual bypass. material: 304L Stainless Steel body, cover, flanges, and internal components; Nylon reinforced Buna-N diaphragm

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF933GS-09.pdfData sheet

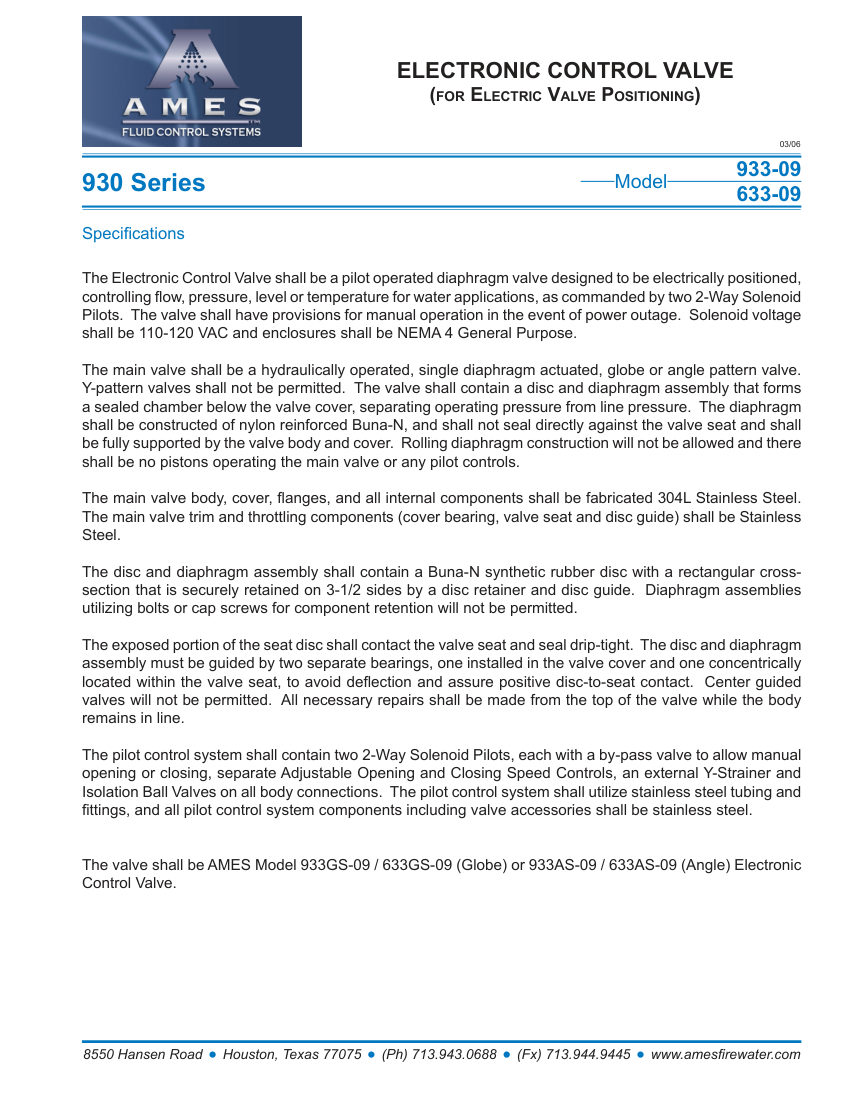

Ames Fire & Waterworks 933GS-09 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
933GS-09
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number933GS-09
DescriptionAmes Fire & Waterworks Electronic Control Valve (930 Series). Model 933GS-09 / 633GS-09 (Globe) or 933AS-09 / 633AS-09 (Angle). Pilot operated diaphragm valve for electric positioning; Controls flow, pressure, level, or temperature; Single diaphragm actuated globe or angle pattern; Includes two 2-Way Solenoid Pilots with manual bypass. material: 304L Stainless Steel body, cover, flanges, and internal components; Nylon reinforced Buna-N diaphragm
ComplianceNEMA 4 General Purpose enclosures
Voltage110-120 VAC.

Also cataloged as: 633GS-09, 933AS-09, 633AS-09
