Ames Fire & WaterworksAutomatic Control Valve LF940GD-04940-04

Ames Fire & Waterworks Automatic Control Valve (Non-Surge Check Valve). Model LF940GD-04. Hydraulically operated, single diaphragm actuated; Separate adjustable opening and closing speed controls; Pilot control system utilizes copper tubing and brass fittings; Disc and diaphragm assembly uses Buna-N synthetic rubber. material: Ductile Iron ASTM A536, CF8M (316) Stainless Steel, Nylon Reinforced Buna-N

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF940-04.pdfData sheet

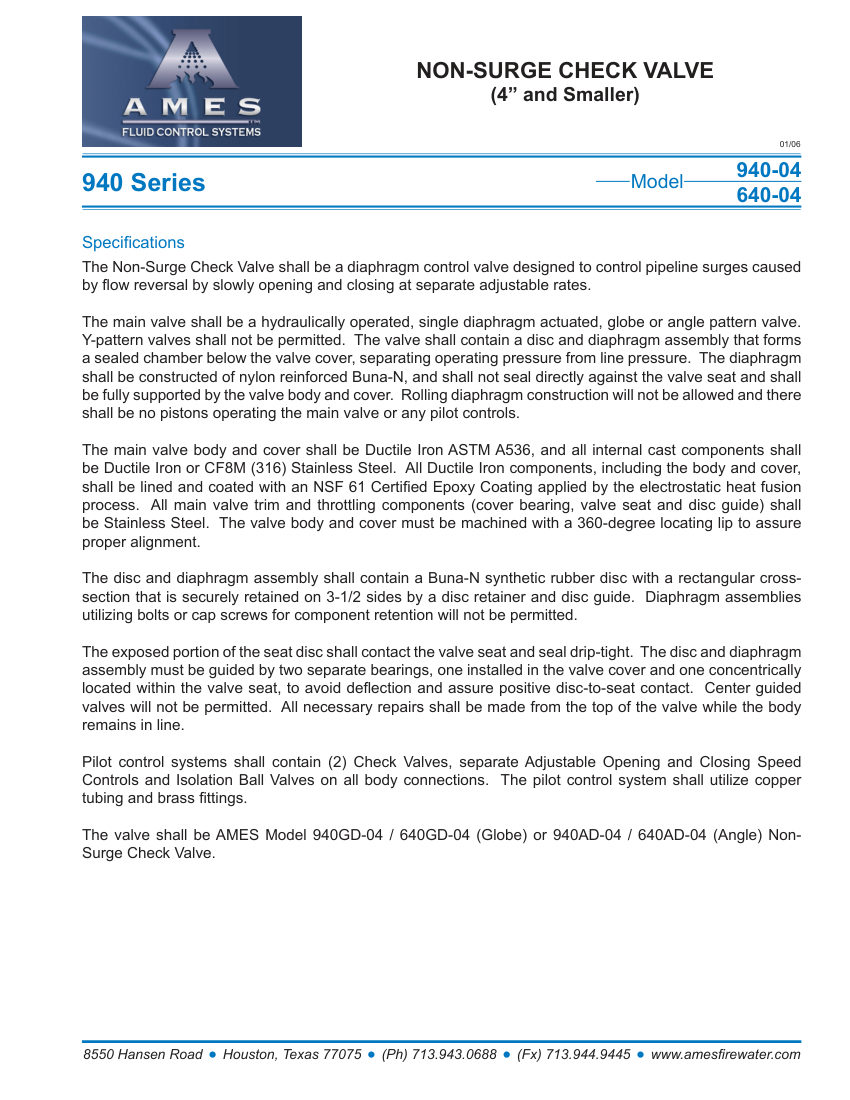

Ames Fire & Waterworks 940-04 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
940-04
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number940-04
DescriptionAmes Fire & Waterworks Automatic Control Valve (Non-Surge Check Valve). Model LF940GD-04. Hydraulically operated, single diaphragm actuated; Separate adjustable opening and closing speed controls; Pilot control system utilizes copper tubing and brass fittings; Disc and diaphragm assembly uses Buna-N synthetic rubber. material: Ductile Iron ASTM A536, CF8M (316) Stainless Steel, Nylon Reinforced Buna-N
Connection size4" and Smaller
FinishNSF 61 Certified Epoxy Coating
MountingGlobe or Angle Pattern
ComplianceNSF 61.

Also cataloged as: 640-04, 940GD-04, 640GD-04, 940AD-04, 640AD-04
