DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksAutomatic Control Valve 940GS-04-09940-04-09

Ames Fire & Waterworks Automatic Control Valve (Non-Surge Check Valve). Model 940GS-04-09. Hydraulically operated, single diaphragm actuated; Nylon reinforced Buna-N diaphragm; Separate adjustable opening and closing speed controls; Stainless steel pilot control system with tubing and fittings. material: 304L Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF940-04-09.pdfData sheet

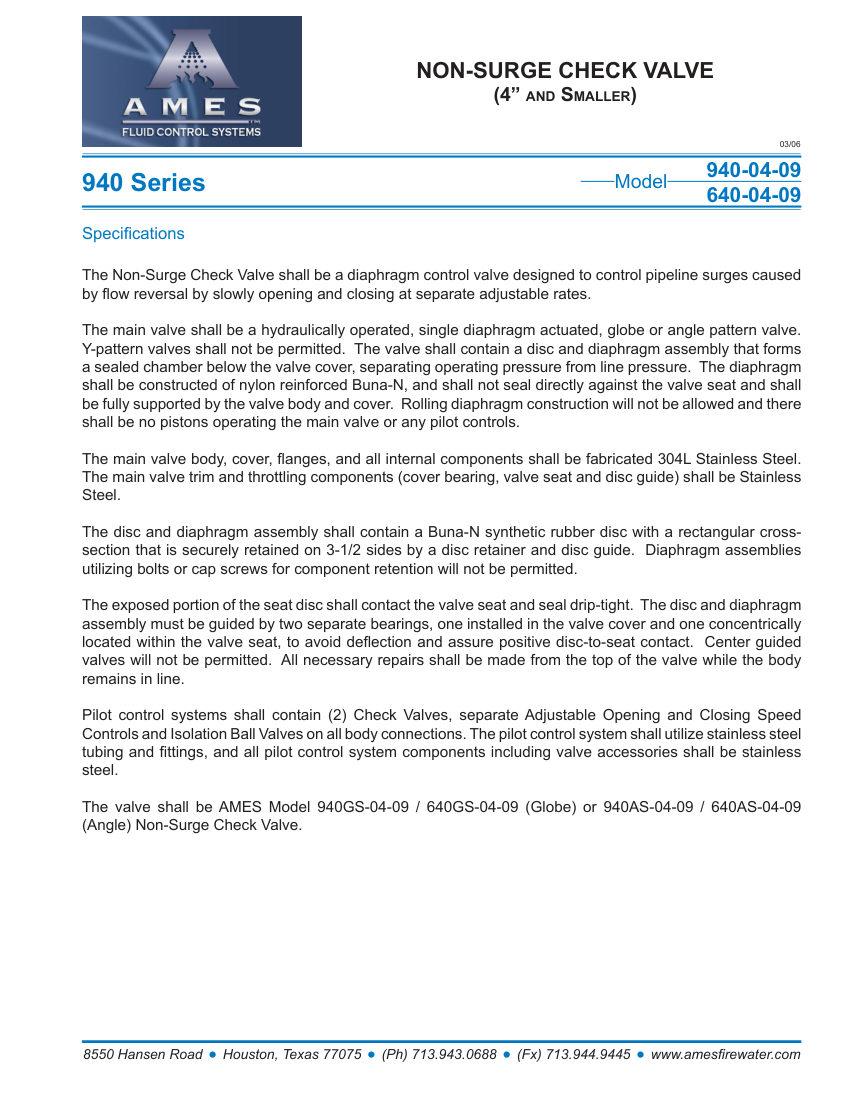

Ames Fire & Waterworks 940-04-09 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
940-04-09
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number940-04-09
DescriptionAmes Fire & Waterworks Automatic Control Valve (Non-Surge Check Valve). Model 940GS-04-09. Hydraulically operated, single diaphragm actuated; Nylon reinforced Buna-N diaphragm; Separate adjustable opening and closing speed controls; Stainless steel pilot control system with tubing and fittings. material: 304L Stainless Steel
Connection size4"
End connectionFlanged
MountingGlobe or Angle pattern.

Also cataloged as: 640-04-09, 940GS-04-09, 640GS-04-09, 940AS-04-09, 640AS-04-09
