DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksAutomatic Control Valve 940GS-04-19940-04-19

Ames Fire & Waterworks Automatic Control Valve (Non-Surge Check Valve). Model 940GS-04-19. Hydraulically operated, single diaphragm actuated; Controls pipeline surges caused by flow reversal; Adjustable opening and closing speed controls; Pilot system utilizes copper tubing and brass fittings. material: 304L Stainless Steel body, Class D zinc plated steel flanges, Buna-N diaphragm

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF940-04-19.pdfData sheet

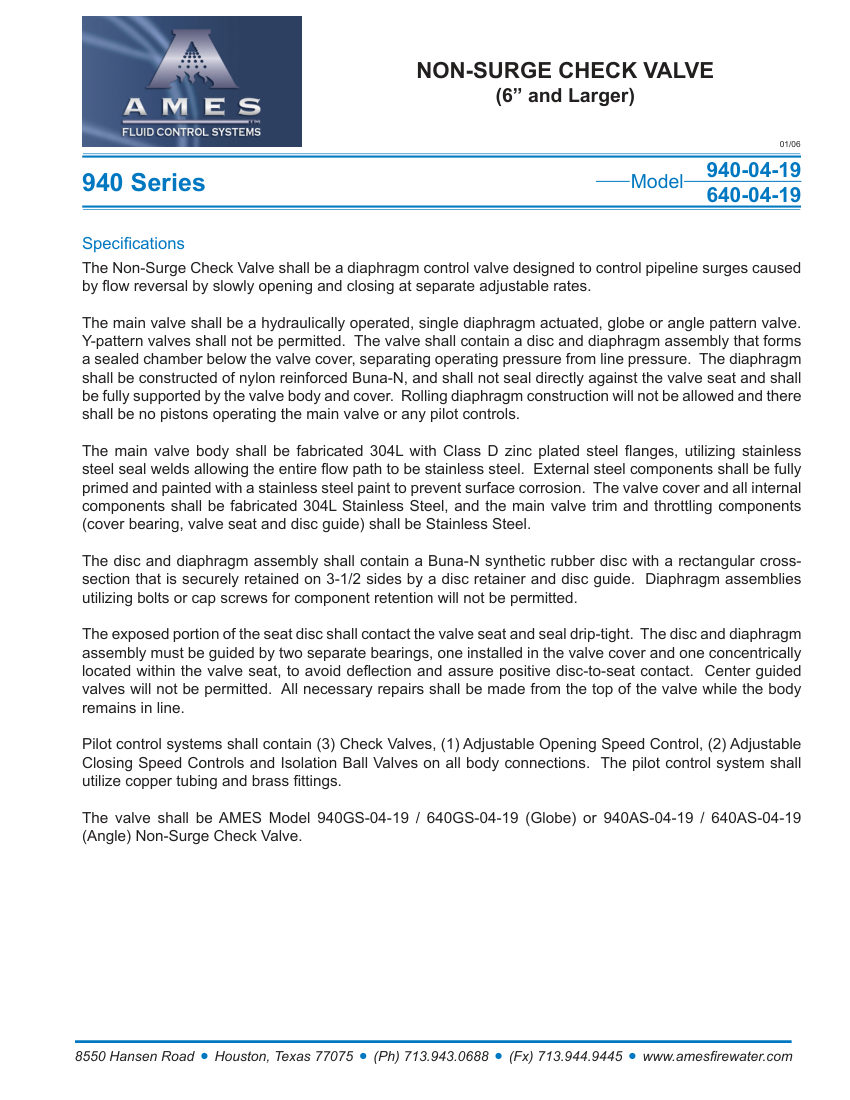

Ames Fire & Waterworks 940-04-19 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
940-04-19
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number940-04-19
DescriptionAmes Fire & Waterworks Automatic Control Valve (Non-Surge Check Valve). Model 940GS-04-19. Hydraulically operated, single diaphragm actuated; Controls pipeline surges caused by flow reversal; Adjustable opening and closing speed controls; Pilot system utilizes copper tubing and brass fittings. material: 304L Stainless Steel body, Class D zinc plated steel flanges, Buna-N diaphragm
Connection size6" and Larger
End connectionFlanged
FinishStainless steel paint on external steel components
MountingGlobe or Angle pattern.

Also cataloged as: 640-04-19, 940GS-04-19, 640GS-04-19, 940AS-04-19, 640AS-04-19
