DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksAutomatic Control Valve 950GS-01-09950 Series

Ames Fire & Waterworks Automatic Control Valve (Rate-of-Flow Control Valve). Model 950GS-01-09. Pilot operated diaphragm valve with hydraulic check feature; Main valve body and internal components fabricated from 304L Stainless Steel; Diaphragm constructed of nylon reinforced Buna-N; Includes remote mounted orifice plate assembly for differential pressure sensing. material: 304L Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF950-Series.pdfData sheet

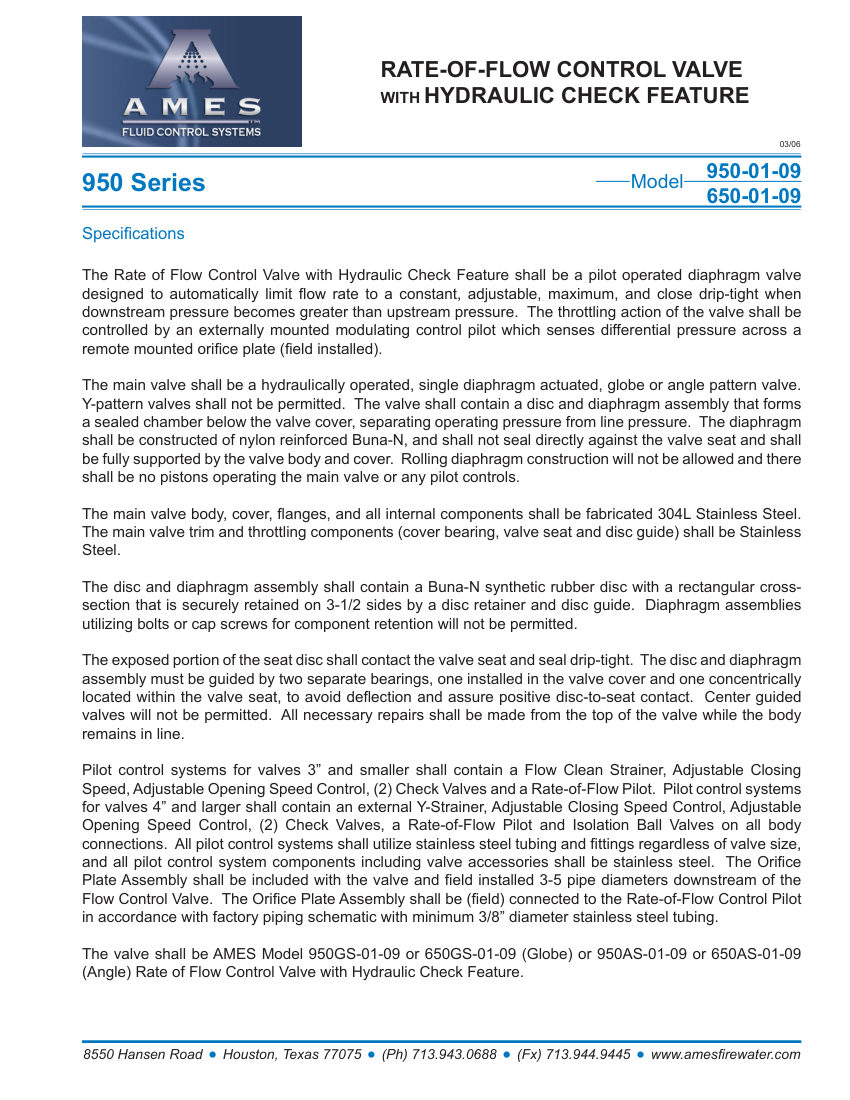

Ames Fire & Waterworks 950 Series cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
950 Series
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number950 Series
DescriptionAmes Fire & Waterworks Automatic Control Valve (Rate-of-Flow Control Valve). Model 950GS-01-09. Pilot operated diaphragm valve with hydraulic check feature; Main valve body and internal components fabricated from 304L Stainless Steel; Diaphragm constructed of nylon reinforced Buna-N; Includes remote mounted orifice plate assembly for differential pressure sensing. material: 304L Stainless Steel
Flow RateConstant, adjustable maximum
MountingGlobe or Angle pattern.

Also cataloged as: 950-01-09, 650-01-09, 950GS-01-09, 650GS-01-09, 950AS-01-09, 650AS-01-09
