DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksAutomatic Control Valve LF950GD-01950GD-01

Ames Fire & Waterworks Automatic Control Valve (Rate-of-Flow Valve). Model LF950GD-01. Pilot operated diaphragm valve with hydraulic check feature; Automatically limits flow rate to a constant, adjustable maximum; Closes drip-tight when downstream pressure exceeds upstream pressure; Main valve body and cover are Ductile Iron ASTM A536 with epoxy coating. material: Ductile Iron ASTM A536, CF8M (316) Stainless Steel, Nylon Reinforced Buna-N

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF950GD-01.pdfData sheet

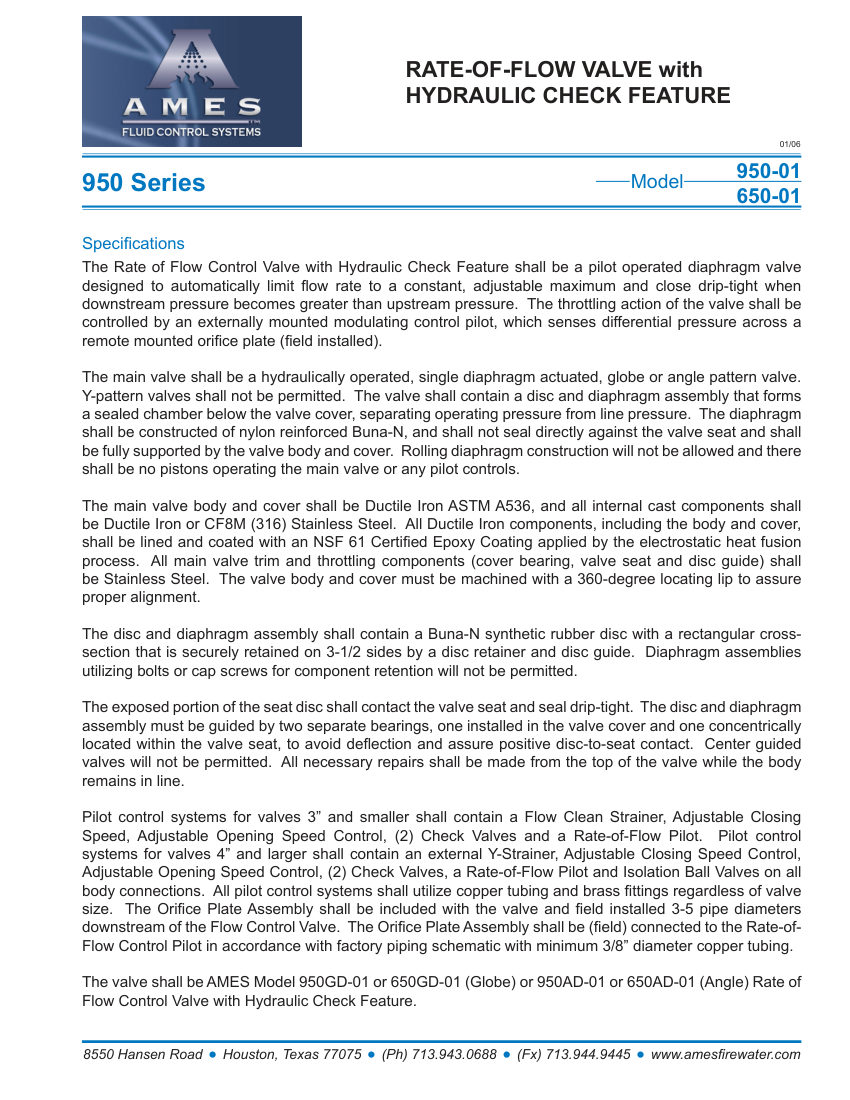

Ames Fire & Waterworks 950GD-01 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
950GD-01
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number950GD-01
DescriptionAmes Fire & Waterworks Automatic Control Valve (Rate-of-Flow Valve). Model LF950GD-01. Pilot operated diaphragm valve with hydraulic check feature; Automatically limits flow rate to a constant, adjustable maximum; Closes drip-tight when downstream pressure exceeds upstream pressure; Main valve body and cover are Ductile Iron ASTM A536 with epoxy coating. material: Ductile Iron ASTM A536, CF8M (316) Stainless Steel, Nylon Reinforced Buna-N
Flow RateConstant, adjustable maximum
FinishNSF 61 Certified Epoxy Coating
MountingGlobe or Angle pattern
ComplianceNSF 61.

Also cataloged as: 650GD-01, 950AD-01, 650AD-01
