Ames Fire & WaterworksAutomatic Control Valve 950GS950GS

Ames Fire & Waterworks Automatic Control Valve (Rate-of-Flow Control Valve). Model 950GS. Pilot operated diaphragm valve; Senses differential pressure across remote mounted orifice plate; Single diaphragm actuated globe or angle pattern; Stainless steel flow path with seal welds. material: 304L Stainless Steel body, cover, and trim; Class D zinc plated steel flanges; Nylon reinforced Buna-N diaphragm; Buna-N synthetic rubber disc

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF950GS.pdfData sheet

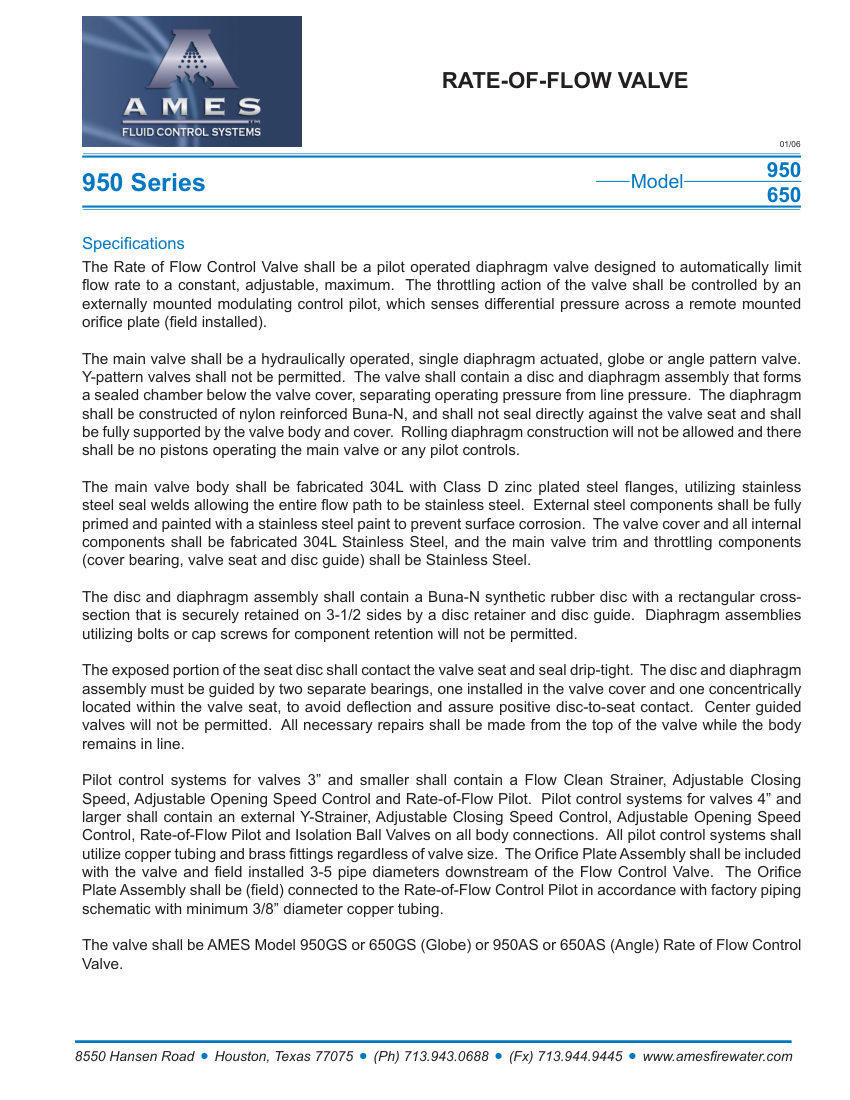

Ames Fire & Waterworks 950GS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
950GS
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number950GS
DescriptionAmes Fire & Waterworks Automatic Control Valve (Rate-of-Flow Control Valve). Model 950GS. Pilot operated diaphragm valve; Senses differential pressure across remote mounted orifice plate; Single diaphragm actuated globe or angle pattern; Stainless steel flow path with seal welds. material: 304L Stainless Steel body, cover, and trim; Class D zinc plated steel flanges; Nylon reinforced Buna-N diaphragm; Buna-N synthetic rubber disc
End connectionFlanged
Flow RateConstant, adjustable maximum
FinishStainless steel paint on external steel components
MountingGlobe or angle pattern.

Also cataloged as: 650GS, 950AS, 650AS
