Ames Fire & WaterworksAutomatic Control Valve LF951GD951

Ames Fire & Waterworks Automatic Control Valve with Pressure Reducing Feature (Rate-of-Flow Valve). Model 951GD. Pilot operated diaphragm valve; Limits flow rate and reduces upstream pressure; Single diaphragm actuated globe or angle pattern; Stainless Steel trim and throttling components. material: Ductile Iron ASTM A536 body/cover, CF8M (316) Stainless Steel internal components, Nylon reinforced Buna-N diaphragm

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF951.pdfData sheet

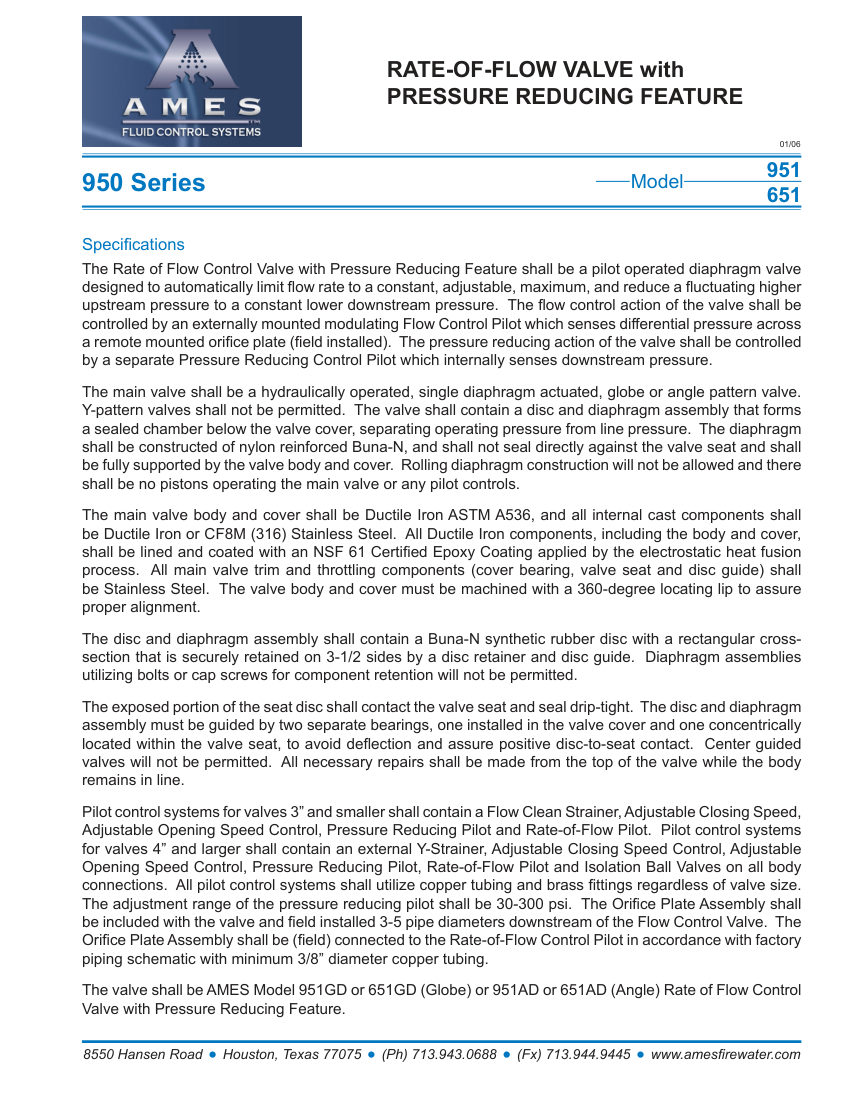

Ames Fire & Waterworks 951 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
951
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number951
DescriptionAmes Fire & Waterworks Automatic Control Valve with Pressure Reducing Feature (Rate-of-Flow Valve). Model 951GD. Pilot operated diaphragm valve; Limits flow rate and reduces upstream pressure; Single diaphragm actuated globe or angle pattern; Stainless Steel trim and throttling components. material: Ductile Iron ASTM A536 body/cover, CF8M (316) Stainless Steel internal components, Nylon reinforced Buna-N diaphragm
Pressure Rating30-300 psi adjustment range
Flow RateConstant, adjustable maximum
FinishNSF 61 Certified Epoxy Coating
MountingGlobe or Angle pattern
ComplianceNSF 61.

Also cataloged as: 951GD, 651GD, 951AD, 651AD, 951GS, 651GS, 951AS, 651AS
