DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksAutomatic Control Valve 951GS-09951GS-09

Ames Fire & Waterworks Automatic Control Valve with Pressure Reducing Feature (Rate-of-Flow Control Valve). Model 951GS-09. Pilot operated diaphragm valve; Nylon reinforced Buna-N diaphragm; Buna-N synthetic rubber disc; Includes Flow Control Pilot and Pressure Reducing Pilot. material: 304L Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF951GS-09.pdfData sheet

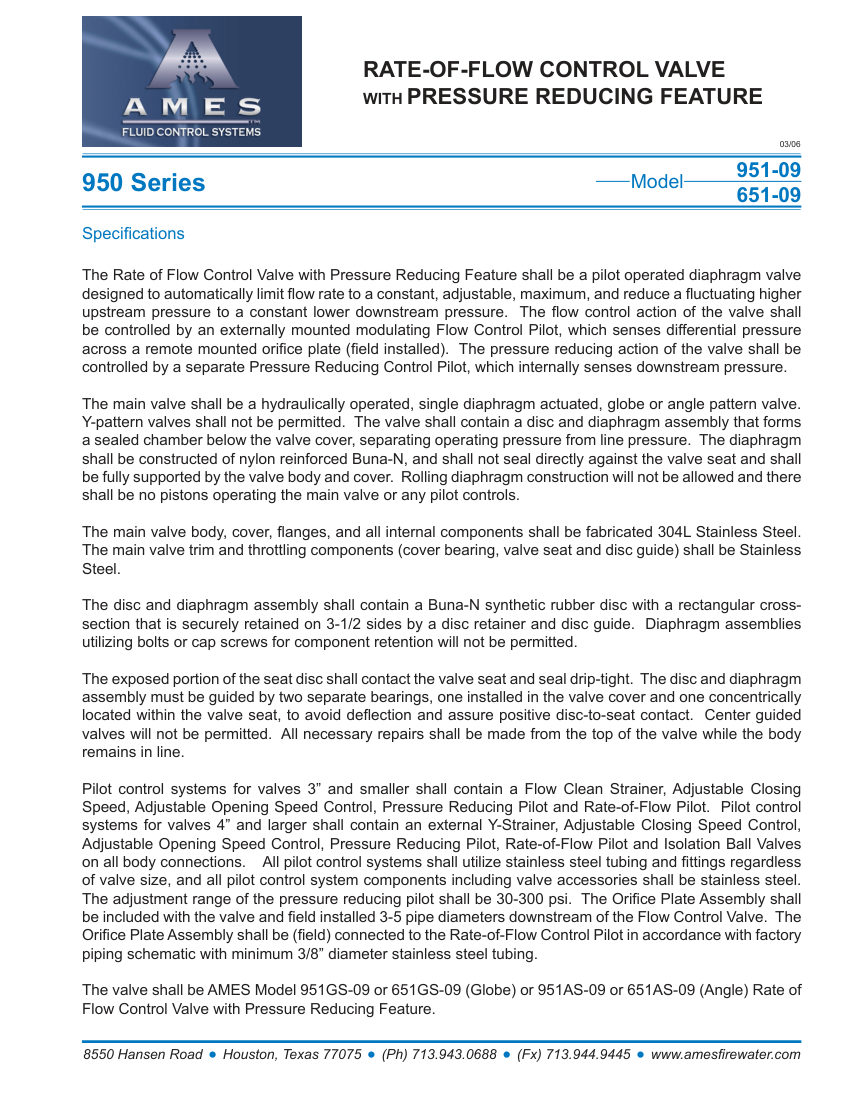

Ames Fire & Waterworks 951GS-09 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
951GS-09
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number951GS-09
DescriptionAmes Fire & Waterworks Automatic Control Valve with Pressure Reducing Feature (Rate-of-Flow Control Valve). Model 951GS-09. Pilot operated diaphragm valve; Nylon reinforced Buna-N diaphragm; Buna-N synthetic rubber disc; Includes Flow Control Pilot and Pressure Reducing Pilot. material: 304L Stainless Steel
Connection size9
End connectionFlanged
Pressure Rating30-300 psi (Pressure Reducing Pilot Adjustment Range)
Flow RateConstant, adjustable maximum
MountingGlobe or Angle Pattern.

Also cataloged as: 651GS-09, 951AS-09, 651AS-09
