DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksAutomatic Control Valve 952GS952GS

Ames Fire & Waterworks Automatic Control Valve (Rate-of-Flow Control Valve). Model 952GS. Pilot operated diaphragm valve; Limits flow rate and sustains minimum upstream pressure; Single diaphragm actuated globe or angle pattern; Stainless steel flow path with 304L body and trim. material: 304L Stainless Steel body, Class D zinc plated steel flanges, Buna-N diaphragm

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF952GS.pdfData sheet

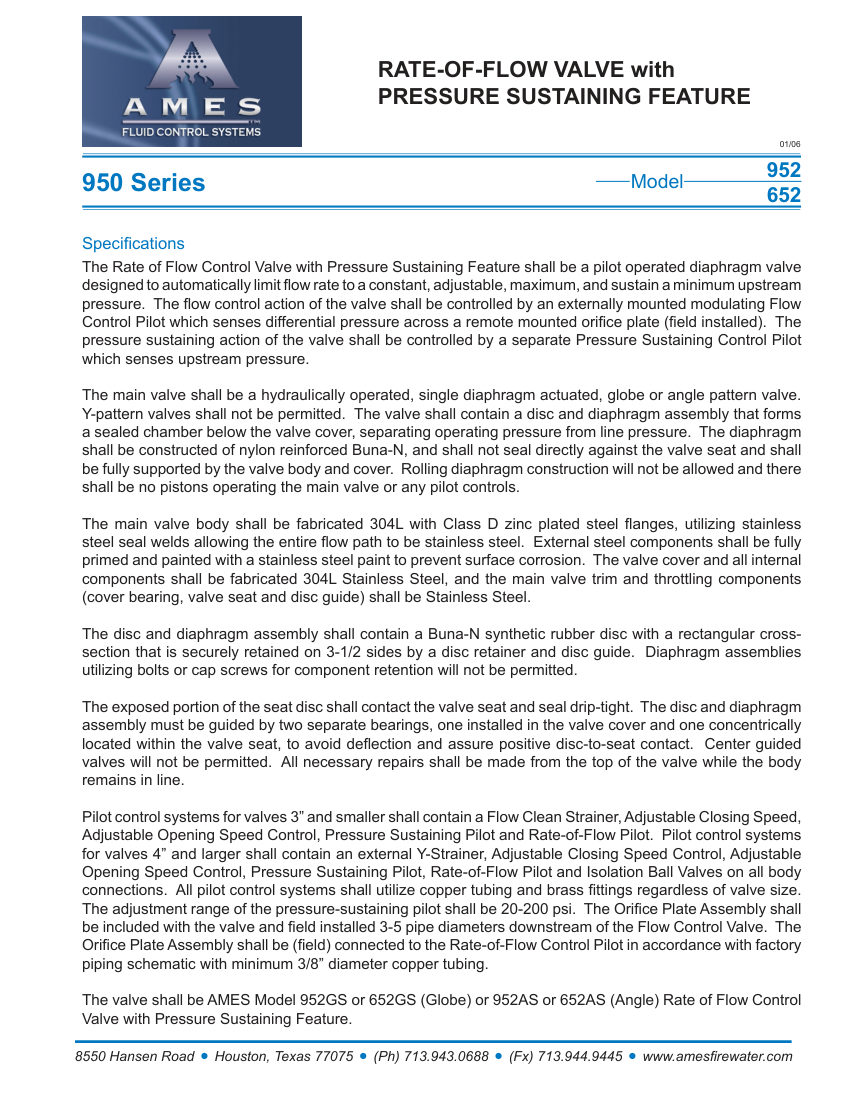

Ames Fire & Waterworks 952GS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
952GS
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number952GS
DescriptionAmes Fire & Waterworks Automatic Control Valve (Rate-of-Flow Control Valve). Model 952GS. Pilot operated diaphragm valve; Limits flow rate and sustains minimum upstream pressure; Single diaphragm actuated globe or angle pattern; Stainless steel flow path with 304L body and trim. material: 304L Stainless Steel body, Class D zinc plated steel flanges, Buna-N diaphragm
End connectionFlanged
Pressure Rating20-200 psi (pilot adjustment range)
Flow RateConstant, adjustable maximum
FinishStainless steel paint on external steel components
MountingGlobe or Angle pattern.

Also cataloged as: 652GS, 952AS, 652AS
