DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksAutomatic Control Valve 960GD-13960-13

Ames Fire & Waterworks One-Way Flow Altitude Valve (Ames Fire & Waterworks 960 Series). Model 960GD-13. Pilot operated diaphragm valve with delayed opening feature; Controls water level in reservoirs or elevated storage tanks; Single diaphragm actuated globe or angle pattern valve; Drip-tight closure when high water level is achieved. material: Ductile Iron ASTM A536 body/cover, CF8M (316) Stainless Steel internal components, Nylon reinforced Buna-N diaphragm

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF960-13.pdfData sheet

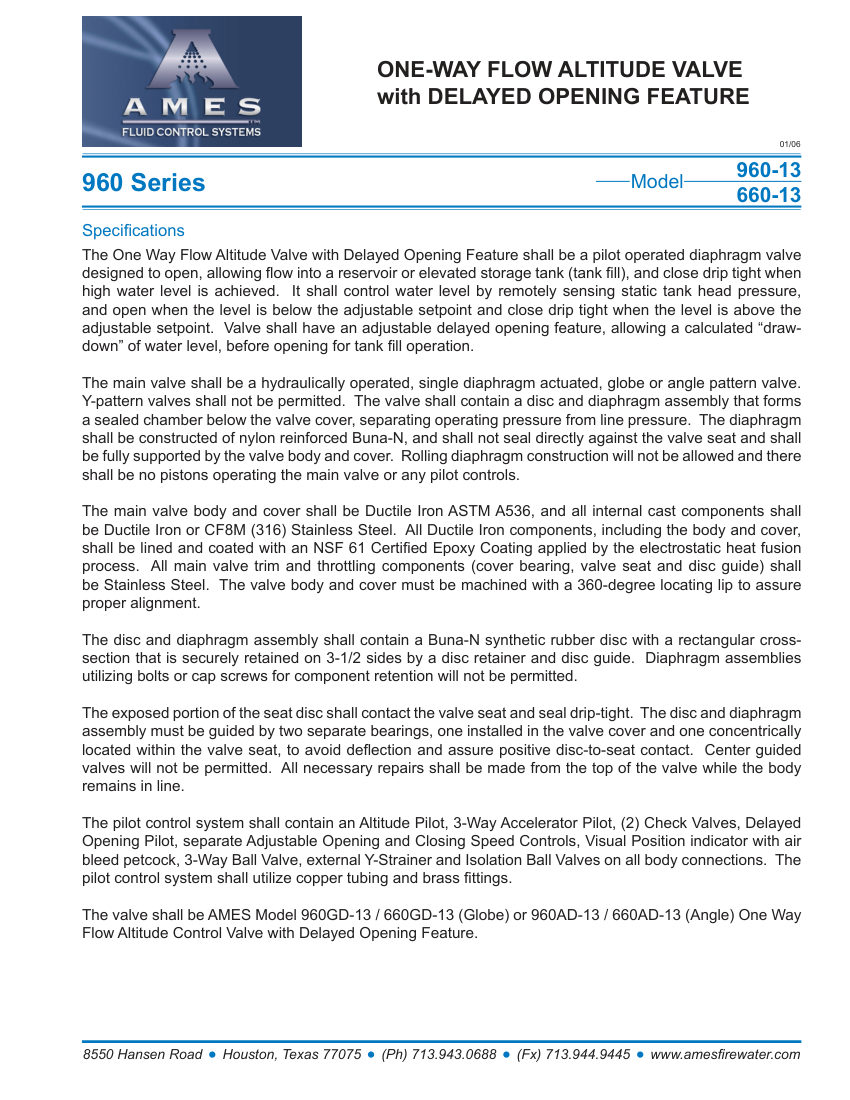

Ames Fire & Waterworks 960-13 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
960-13
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number960-13
DescriptionAmes Fire & Waterworks One-Way Flow Altitude Valve (Ames Fire & Waterworks 960 Series). Model 960GD-13. Pilot operated diaphragm valve with delayed opening feature; Controls water level in reservoirs or elevated storage tanks; Single diaphragm actuated globe or angle pattern valve; Drip-tight closure when high water level is achieved. material: Ductile Iron ASTM A536 body/cover, CF8M (316) Stainless Steel internal components, Nylon reinforced Buna-N diaphragm
FinishNSF 61 Certified Epoxy Coating
MountingGlobe or Angle pattern
ComplianceNSF 61.

Also cataloged as: 660-13, 960GD-13, 660GD-13, 960AD-13, 660AD-13
