DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

Ames Fire & WaterworksAutomatic Control Valve 985GS-09-20985GS-09-20

Ames Fire & Waterworks Automatic Control Valve (Deep Well Pump Control Valve). Model 985GS-09-20. Pilot operated diaphragm valve with pressure relief feature; Main valve body and internal components fabricated from 304L Stainless Steel; Diaphragm constructed of nylon reinforced Buna-N; Includes 4-Way Solenoid Pilot, Manual Operator, and Limit Switch. material: 304L Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF985GS-09-20.pdfData sheet

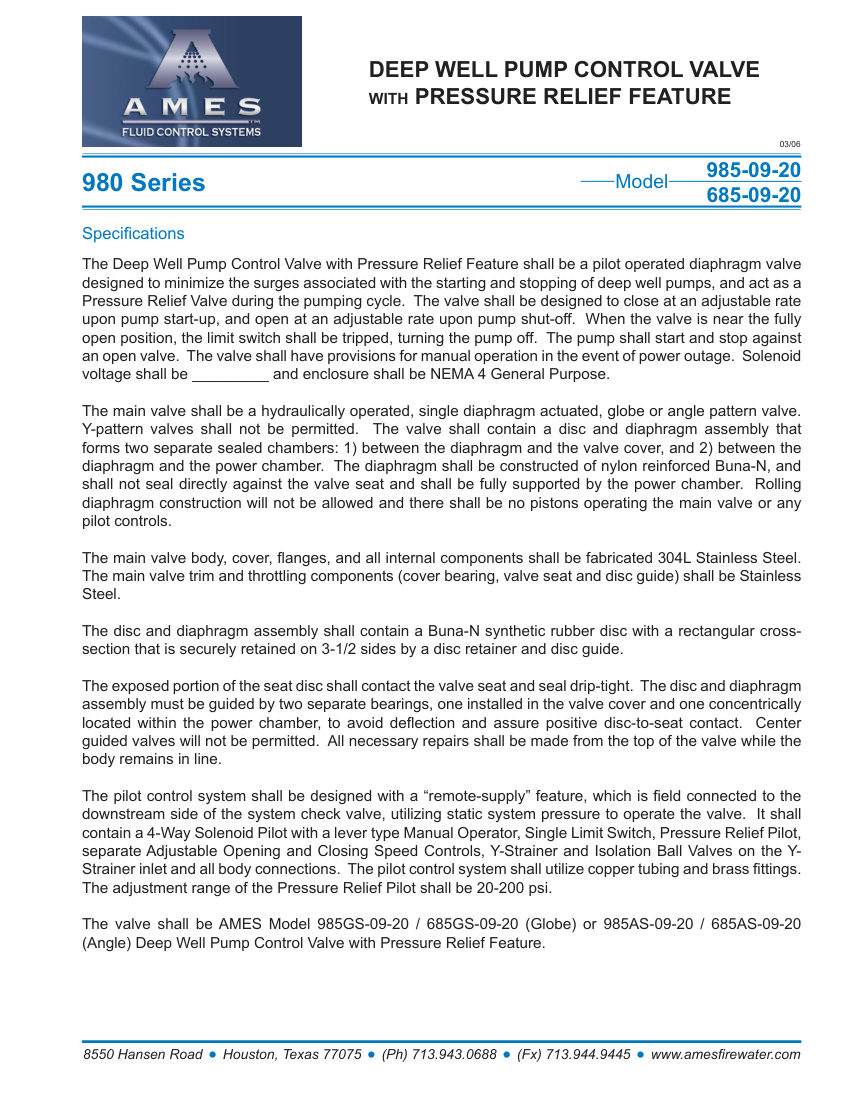

Ames Fire & Waterworks 985GS-09-20 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
985GS-09-20
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number985GS-09-20
DescriptionAmes Fire & Waterworks Automatic Control Valve (Deep Well Pump Control Valve). Model 985GS-09-20. Pilot operated diaphragm valve with pressure relief feature; Main valve body and internal components fabricated from 304L Stainless Steel; Diaphragm constructed of nylon reinforced Buna-N; Includes 4-Way Solenoid Pilot, Manual Operator, and Limit Switch. material: 304L Stainless Steel
Connection size9
End connectionFlanged
Pressure Rating20-200 psi (Pressure Relief Pilot adjustment range)
ComplianceNEMA 4 General Purpose.

Also cataloged as: 685GS-09-20, 985AS-09-20, 685AS-09-20
