Ames Fire & WaterworksAutomatic Control Valve 605GSACV 605GS

Ames Fire & Waterworks Reduced Port Single Chamber Basic Valve (Automatic Control Valve). Model 605GS. Globe Pattern Single Chamber Design; One-piece disc and diaphragm assembly; Trim made of 316L Stainless Steel; Standard elastomer is Buna-N (Max 160°F). material: 316 Stainless Steel (3"-4"), 304L Stainless Steel (6"-24")

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFACV-605GS.pdfData sheet

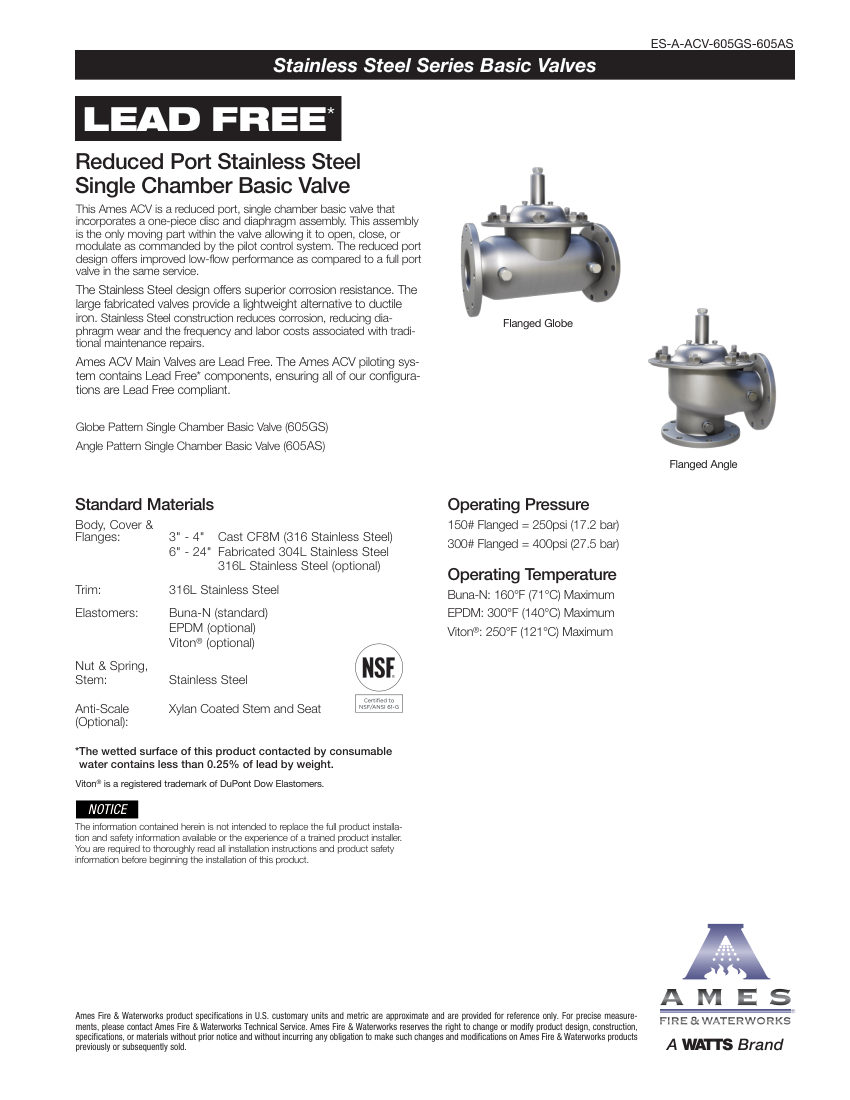

Ames Fire & Waterworks ACV 605GS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Ames Fire & Waterworks
Catalog no.
ACV 605GS
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberACV 605GS
DescriptionAmes Fire & Waterworks Reduced Port Single Chamber Basic Valve (Automatic Control Valve). Model 605GS. Globe Pattern Single Chamber Design; One-piece disc and diaphragm assembly; Trim made of 316L Stainless Steel; Standard elastomer is Buna-N (Max 160°F). material: 316 Stainless Steel (3"-4"), 304L Stainless Steel (6"-24")
Connection size3" - 24"
End connectionFlanged
Pressure Rating150# (250 psi) / 300# (400 psi)
Flow Rate210-11100 GPM (Max Continuous)
ComplianceLead Free (<0.25% lead).

Also cataloged as: ACV 605AS, ACV 3, ACV 4, ACV 6, ACV 8, ACV 10, ACV 12, ACV 16, ACV 18, ACV 20, ACV 24
